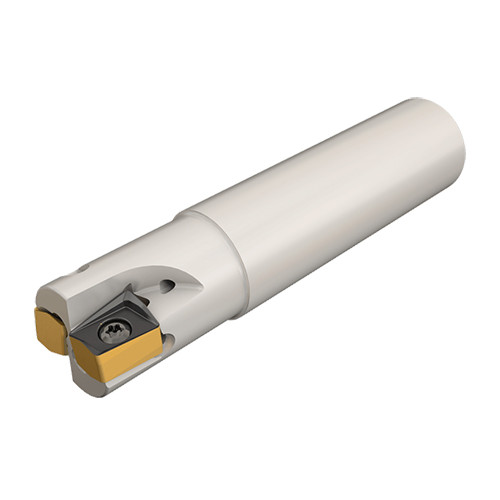

H490 E90AX D32-3-W32-12
90° endmills carrying H490 ANKX 12...double-sided rectangular inserts with 4 helical cutting edges. Used for heavy applications (HELIDO 490 Line).

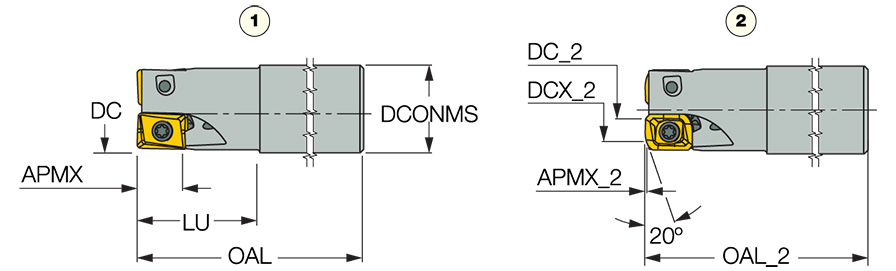

| Cutting Diameter (DC/DCX) | 32 mm | Head Length (LH) | 40 mm |
| Cutting Diameter (DC) | 32 mm | Functional Length (LF) | 74 mm |
| Cutting Item Count (CICT) | 3 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 12 mm | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 110 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 4 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Shouldering | Side Plunging | Slotting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Master Insert Identification (MIID) | H490 ANKX 1205PNTRR | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 0.59 Kg |
Product Features
| Family Description | 90° endmills carrying H490 ANKX 12...double-sided rectangular inserts with 4 helical cutting edges. Used for heavy applications (HELIDO 490 Line). | Country of Origin | Israel |
| Remarks | 1- with standard square insert, 2- with FF (fast feed) insert Ramping angle is valid only when H490 ANKX ANCX 1205R15T-FF insert is used When assembled the H490 ANCX 1205R15T-FF insert, tool diameter enlarges by 0.5 mm |
Shipping Info
Package Weight
1.545
