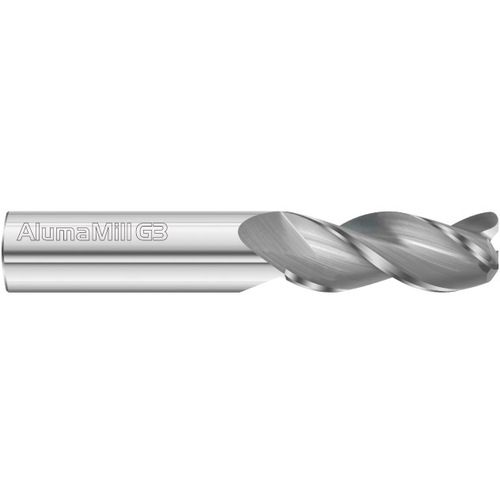

Corner Radius End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 3 FL ; Carbide ; Uncoated ; Series 3833
| Cutting Diameter (DC) | 1/2″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 5/8″ | Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 3″ | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Length Group | Regular |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.5″ |
| Flute Helix Angle (FHA) | 37.5 Degrees | Series/List # | 3833 |
Product Features
| Remarks | <li>Square, Ball and Radius End</li> <li>3 Flutes</li> <li>37.5° High Helix</li> <li>Single End</li> <li>Right Hand Spiral</li> <li>Right Hand Cut</li> <li>Available in Various Flute and Overall Lengths</li> <li>Standard Uncoated and FC-19 Coating</li> <li>Inch Based Tools</li> <li>Dura Carb (Micrograin)</li> <li>Shank Diameter Tolerance: h6</li> <li>Cutter Diameter Tolerance: +.0000″ -. 0005″ / +0.000–0.013mm</li> <li>Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated</li> | Country of Origin | USA |
Shipping Info
Package Weight
0.275
