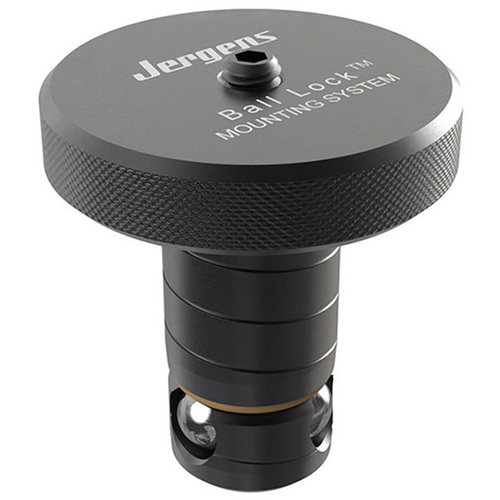

Shank, 25 mm Shank Diameter × 3/4″ Fixture Plate Thickness, 4340 Steel, Black Oxide Finish
| Type | Shank | Head Diameter | 2″ |
| System Compatibility | Ball Lock® | Length Under Head | 1.7″ |
| Fixture Plate Thickness | 3/4″ | Hex Wrench Size | 5/32″ |
| Shank Diameter | 25 mm | Max Holddown Force | 7,000 lbs |
| Material | 4340 Steel | Recommended Screw Torque | 7 ft-lbs |
| Finish | Black Oxide | Repair Kit Part Number | 49911 |
| Head Thickness | 0.38″ |
Product Features
| Remarks | •Material: Shank/Bushing, 4340. •Finish: Black Oxide. •Heat Treat: •Shanks, RC 40-45. •Bushings, RC 50-54. •Liners, RC 62-64. •Operating temperature range: -30°C to 200°C. | Country of Origin | USA |
Shipping Info
LocalField10
0
Package Weight
0.68
