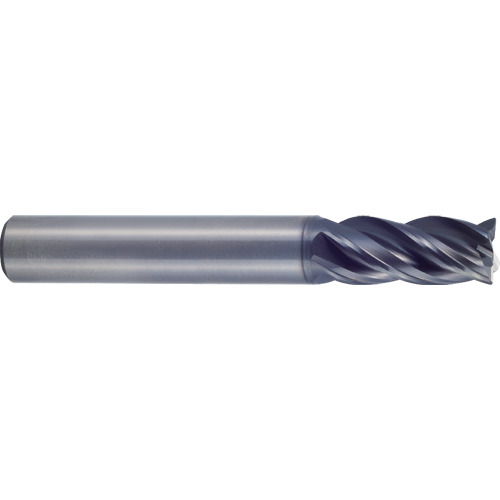

Corner Radius End Mill; 3 mm Dia. × 8 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 4 FL ; Carbide ; Y-Coating ; Series GMF58

Cutting Diameter (DC) | 3 mm | End Shape | Corner Radius |
Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
Depth of Cut Maximum (APMX) | 8 mm | Corner Radius (RE) | 0.5 mm |
Overall Length (OAL) | 57 mm | Tool Type | 4 Flute Standard Length |
Cutting Edge Material | Carbide | Decimal Equivalent | 0.1181″ |
Coating | AlCrN | Measurement Type | Metric |
Flute Count (NOF) | 4 | Series/List # | GMF58 |
Flute Helix Angle (FHA) | 35 Degrees/37 Degrees | Cutting Direction (HAND) | Right Hand |
Shank Type | Round | Center Cutting | Yes |
Product Features
Country of Origin | KR |
Shipping Info
Package Length
2.625
Package Width
0.625
Package Height
0.625
Package Weight
0.0495
