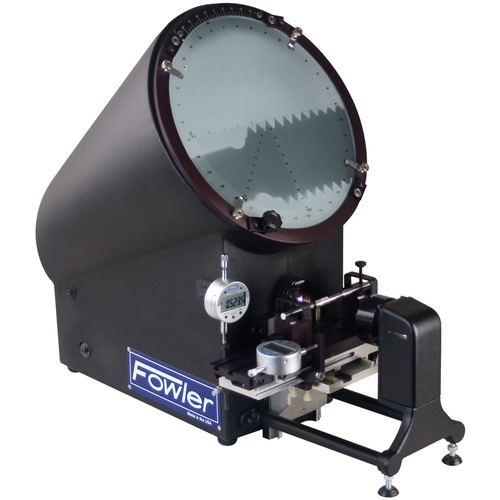

Model 53–900–000–12″ Screen Diameter–0.0005″/0.01 mm Resolution - Basic Bench Comparator
Additional Canadian Tariff of 25 %
| Type | Basic Bench Comparator | Y-Axis Stage Travel | 2 1/2″ |
| Screen Diameter | 12″ | Included | Lens |
| Magnification | 10X, 20X, 40X | Model No | 53-900-000 |
| X-Axis Stage Travel | 6″ |
Product Features
| Remarks | •12″ Basic Bench Top Optical Comparator Standard with Profile and Surface illumination. A must for all tool room applications this bench top comparator is lightweight, portable and economical. •Featuring the basics for comparative/absolute measurements. •1 quadrant protractor screen graduated to 10X,20X &40X •2 each,AGD Group 2,0–1 /25mm electronic digital indicators with .0005 /.01mm resolution •10X lens is included with the unit and other lenses are available •T-slot stage with a travel of 6 horizontally and 2–1/2 vertically make the unit universal for many different types set-ups •Uses a standard 110 power source so noexpensive special electrical supply is needed | Country of Origin | USA |
Shipping Info
LocalField10
Commercial Truck - Call for Shipping Charges
Shipping Notes
Weighted Item. Additional Costs Apply.
Package Weight
70
