P290 EPW125-3-6.5-W125-18

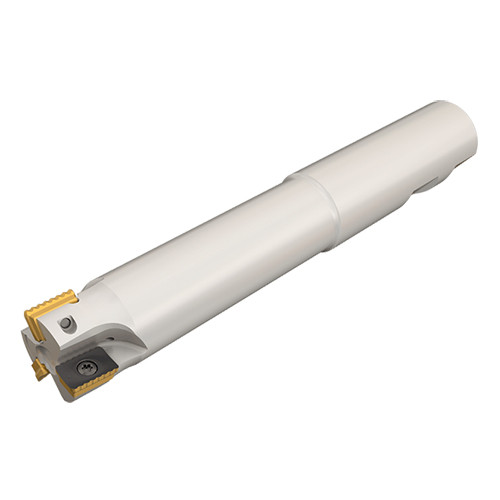

Long reach endmills carrying .472 and .708″ long edged inserts.

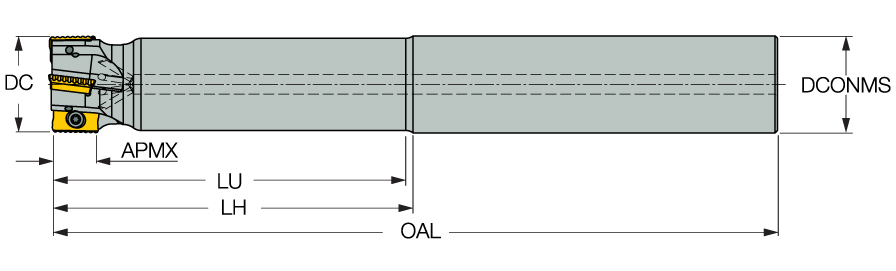

| Cutting Diameter (DC/DCX) | 1-1/4″ | Head Length (LH) | 4″ |
| Cutting Diameter (DC) | 1-1/4″ | Functional Length (LF) | 5.359″ |
| Cutting Item Count (CICT) | 3 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.708″ | Usable Length (LU) | 3.91″ |
| Overall Length (OAL) | 6-1/2″ | Flute Count (NOF) | 3 |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 2 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Rampdown | Shouldering | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | P290 ACKT 1806PDR-FW | Body Material | Steel |
| Weight of Item (WT) | 1.77 Lbs | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | Long reach endmills carrying .472 and .708″ long edged inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
2.002
