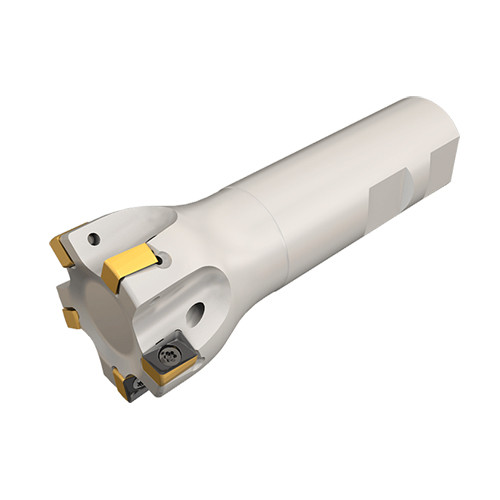

H490 E90AXD1.25-4C1.25-9B
90° endmills carrying H490 ANKX 09... double-sided rectangular inserts with 4 helical cutting edges. Used for heavy applications.

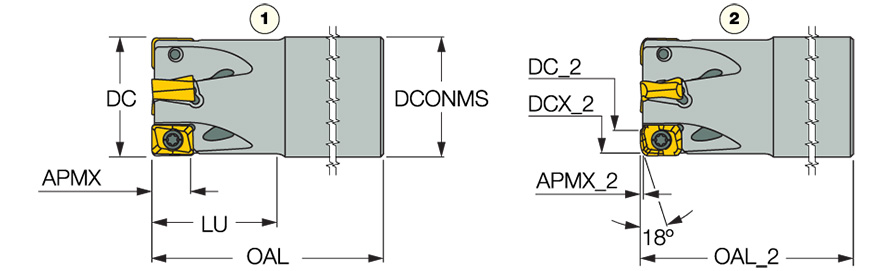

| Cutting Diameter (DC/DCX) | 1-1/4″ | Head Length (LH) | 1.57″ |
| Cutting Diameter (DC) | 1-1/4″ | Functional Length (LF) | 7.87″ |
| Cutting Item Count (CICT) | 4 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.315″ | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 7.87″ | Coolant Supply Property (CSP) | Coolant Thru |

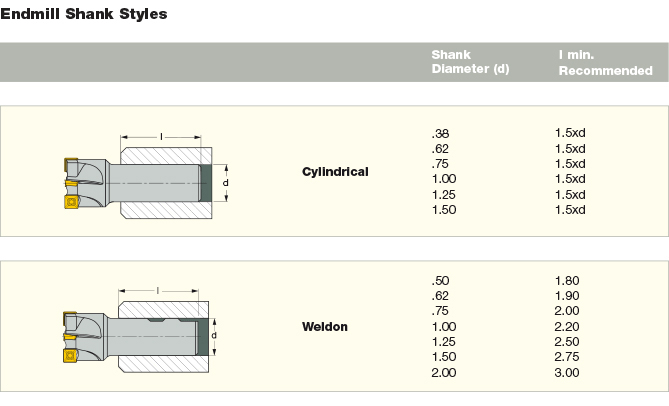

| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Shouldering | Side Plunging | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Master Insert Identification (MIID) | H490 ANKX 0904 | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 2.45 Lbs |
Product Features
| Family Description | 90° endmills carrying H490 ANKX 09... double-sided rectangular inserts with 4 helical cutting edges. Used for heavy applications. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info B Suffix cylindrical shank which may be shortened 1- with standard square insert 2- with FF (fast feed) insert When assembled the H490 ANKX 0904R12T-FF insert, tool diameter enlarges by .004? |
Shipping Info
Package Weight
2.723
