HGPAD 5R-T20-JHP

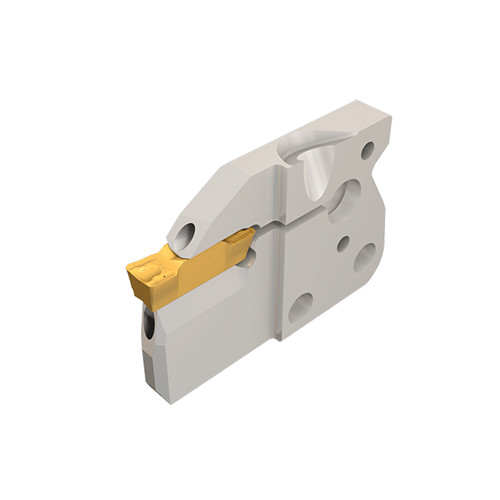

MODULAR-GRIP adapters with high-pressure coolant channels carrying turning, grooving and parting inserts.

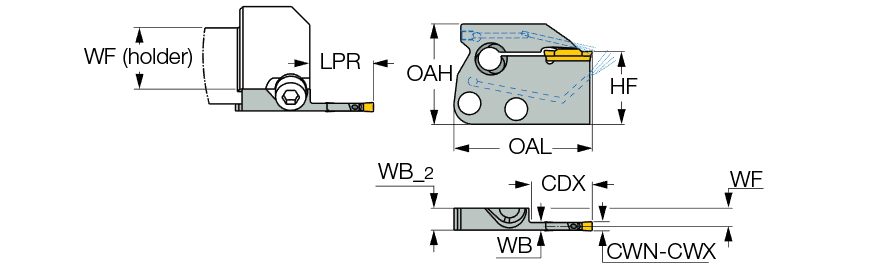

| Cutting Width Minimum (CWN) | 0.197″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Width Maximum (CWX) | 0.197″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Cutting Depth Maximum (CDX) | 0.787″ | Body Material | Steel |
| Functional Width (WF) | 0.201″ | Tool Type | Turn-Groove Tools |
| Overall Length (OAL) | 1.799″ | Measurement Type | Inch |
Product Features
| Family Description | MODULAR-GRIP adapters with high-pressure coolant channels carrying turning, grooving and parting inserts. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Weight
0.114
Related Documentation
SR14-519-supplied screw in the attached plastic bag for GAD, GAM, DGAD, HGAD and PCADR/L adapters. SR M6X20-XT-supplied screws with the tools in the plastic bag for CGPAD, HGPAD, TGPAD and FGPAD adapters. Sealing Screw used to prevent chips from entering the upper locking screw hole of adapter above.
