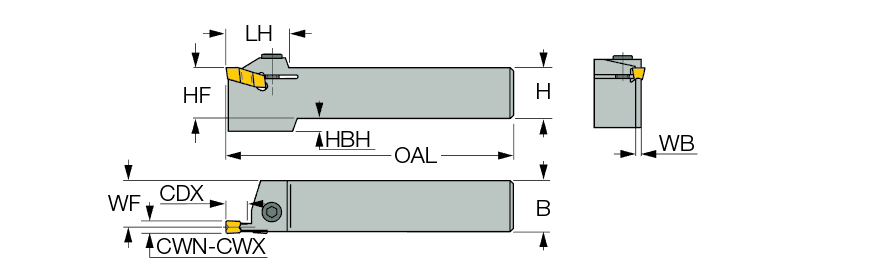

| Cutting Width Minimum (CWN) | 0.157″ | Overall Length (OAL) | 6″ |
| Cutting Width Maximum (CWX) | 0.2″ | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 0.4″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Pulley V Grooving | Threading (Ext.) Groove Turn T | |
| Shank Height (H) | 1″ | Body Material | Steel |
| Shank Width (B) | 1″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 0.94″ | Measurement Type | Inch |
| Head Length (LH) | 1.1″ |
Product Features
| Family Description | External tools for turning, grooving and parting. | Country of Origin | Israel |

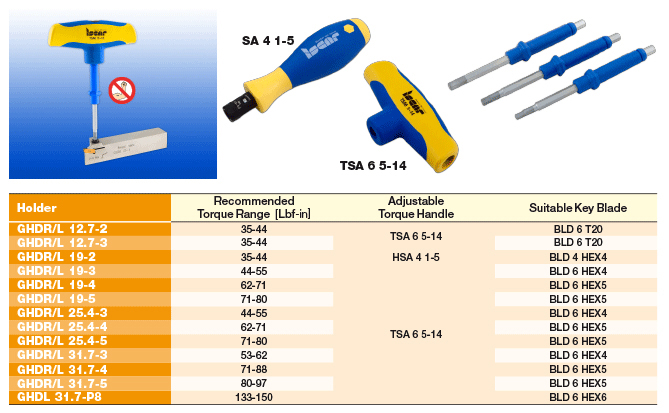

| Remarks | For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance. When using GIVR/L inserts, tool holder's seat needs to be modified To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
LocalField10
0
Package Weight
1.675
