HELIIR 38.1C-612
Grooving and turning bars with coolant holes for HELI-GRIP utility inserts

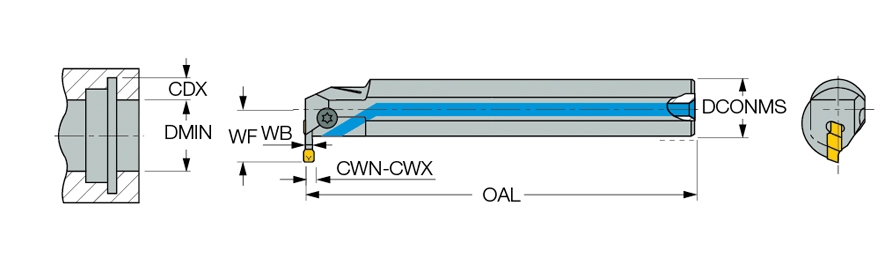

| Cutting Width Minimum (CWN) | 0.236″ | Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Cutting Width Maximum (CWX) | 1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 0.472″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | |
| Minimum Bore Diameter (DMIN) | 2.08″ | Body Material | Steel |
| Functional Width (WF) | 1.23″ | Tool Type | Indexable Turn & Groov Tools |
| Overall Length (OAL) | 10″ | Measurement Type | Inch |
Product Features
| Family Description | Grooving and turning bars with coolant holes for HELI-GRIP utility inserts | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Length
11.00000
Package Width
2.00000
Package Height
2.00000
Package Weight
4.345
