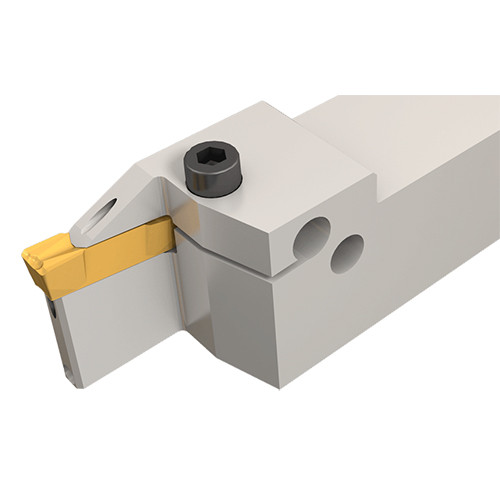

GHDL 32-8-JHP
CUT-GRIP tools with channels for high-pressure coolant for grooving and turning.

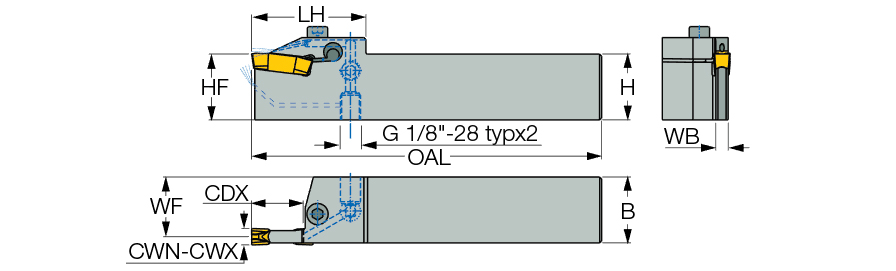

| Cutting Width Minimum (CWN) | 6.6 mm | Overall Length (OAL) | 170 mm |
| Cutting Width Maximum (CWX) | 8.3 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 25 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Shank Height (H) | 32 mm | Body Material | Steel |
| Shank Width (B) | 32 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 29 mm | Measurement Type | Metric |
| Head Length (LH) | 55.5 mm |
Product Features
| Family Description | CUT-GRIP tools with channels for high-pressure coolant for grooving and turning. | Country of Origin | Israel |

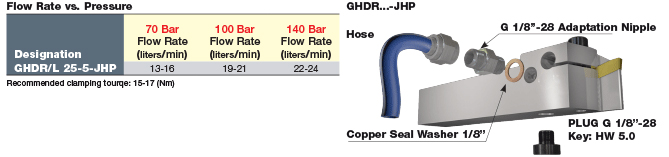

| Remarks | For more details click on More Info To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
2.787
