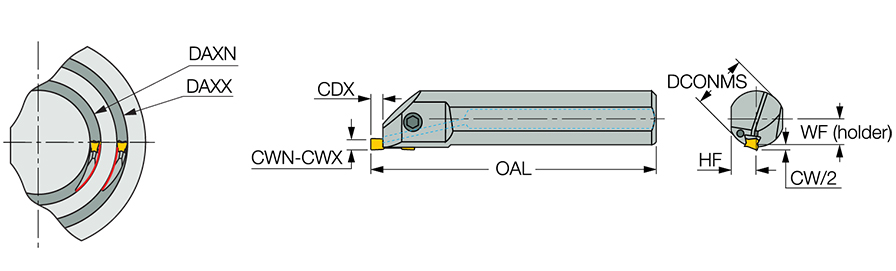

| Cutting Width Minimum (CWN) | 3 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Width Maximum (CWX) | 6 mm | Application | | Face Grooving | Face Grooving & Turning | Int. Face Grooving | Int. Face Recessing | |
| Cutting Depth Maximum (CDX) | 5 mm | Body Material | Steel |
| Functional Width (WF) | 11.14 mm | Tool Type | Indexable Turn & Groov Tools |
| Overall Length (OAL) | 170 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
Product Features
| Family Description | Boring bars for internal grooving and turning, Dmin. 20 mm. | Country of Origin | Israel |

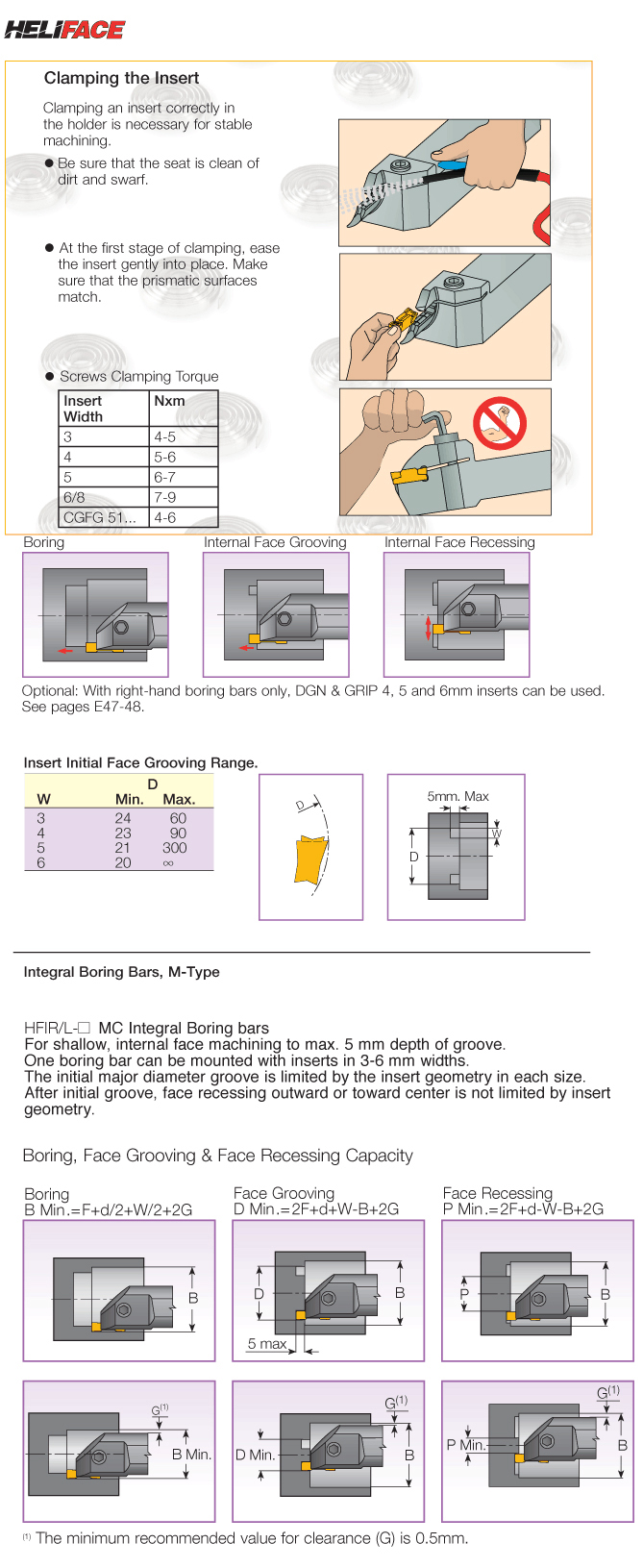

| Remarks | For insert clamping instructions, click on More Info |
Shipping Info
Package Weight
0.827
