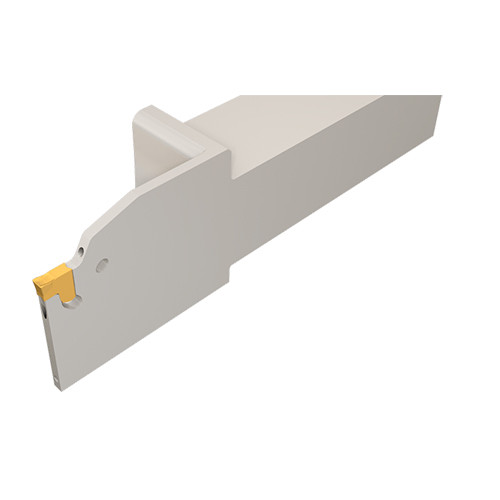

TGTR 2020-D82-3-JHP-MC
Parting tools with bottom inlets and a very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life.

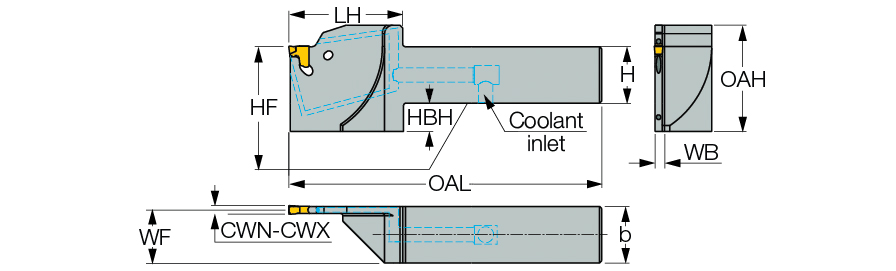

| Cutting Width Minimum (CWN) | 2.8 mm | Overall Length (OAL) | 119 mm |
| Cutting Width Maximum (CWX) | 3.5 mm | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 20 mm | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 20 mm | Body Material | Steel |
| Body Width (WB) | 2.5 mm | Measurement Type | Metric |
| Head Length (LH) | 49 mm | Head Bottom Offset Height (HBH) | 10 mm |
Product Features
| Family Description | Parting tools with bottom inlets and a very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life. | Country of Origin | Israel |
| Remarks | For more details click on More Info |
Shipping Info
Package Weight
0.657
