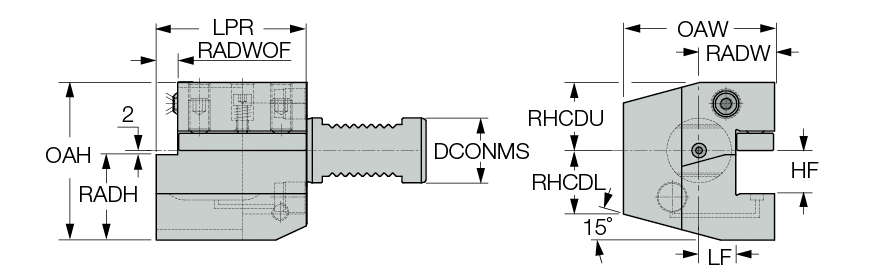

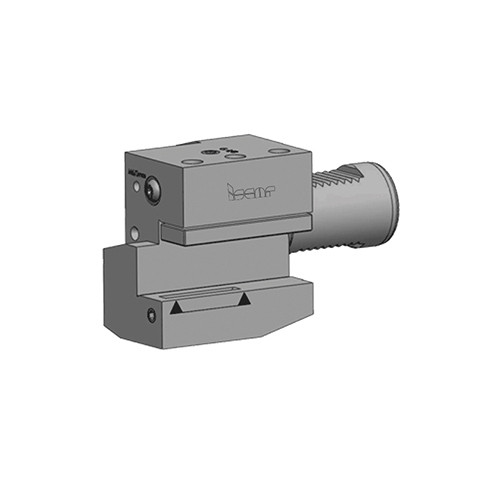

VDI40 C1C4A-402585-JHPMC
Axially oriented, short right-hand holders with coolant channels and VDI DIN69880 shanks for square shank tools.
| Overall Length (OAL) | 148 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Tool Type | HSK -T (ISO 12164-3) |
| Coolant Supply Property (CSP) | Coolant Thru | Measurement Type | Metric |
Product Features
| Family Description | Axially oriented, short right-hand holders with coolant channels and VDI DIN69880 shanks for square shank tools. | Country of Origin | China |
| Remarks | Form C1 axial R.H., form C4 axial overhead L.H. short. |
Shipping Info
Package Weight
7.540
