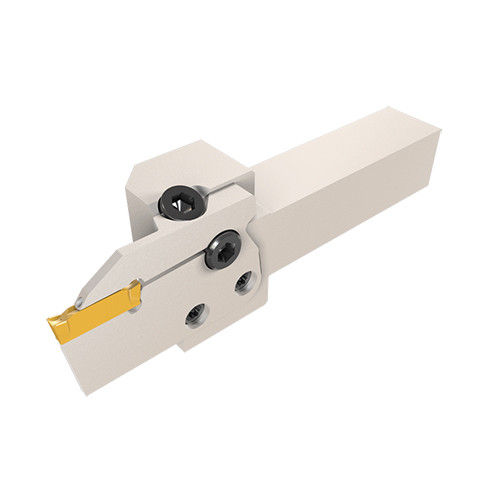

MAHL 25-JHP-MC
Holders with Bottom Inlets for high-pressure coolant channels carrying MODULAR-GRIP adapters. The holders were designed to be clamped in VDI shank tool holders with bottom coolant-fed tools.

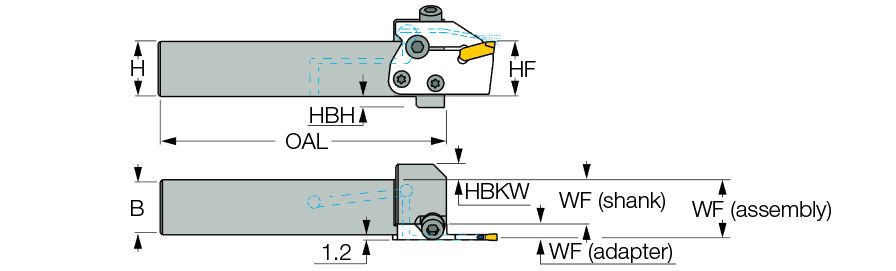

| Shank Height (H) | 25 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Width (B) | 25 mm | Body Material | Steel |
| Functional Width (WF) | 19 mm | Tool Type | Blocks for blades |
| Overall Length (OAL) | 98 mm | Measurement Type | Metric |
Product Features
| Family Description | Holders with Bottom Inlets for high-pressure coolant channels carrying MODULAR-GRIP adapters. The holders were designed to be clamped in VDI shank tool holders with bottom coolant-fed tools. | Country of Origin | Israel |
| Remarks | For CDX, refer to the adapters data. |
Shipping Info
Package Weight
1.237
