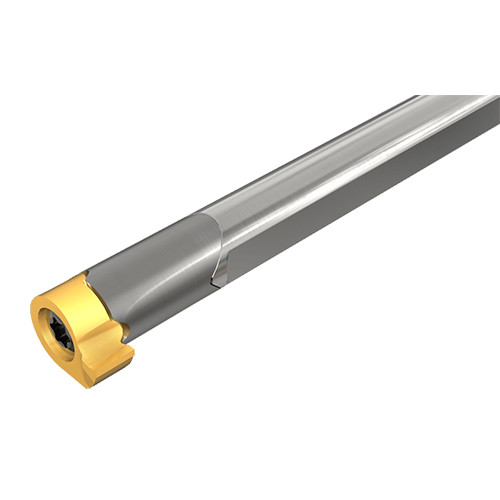

MGCH 06C
CHAMGROOVE solid carbide bars for internal grooving, turning and threading, DMIN .315″.

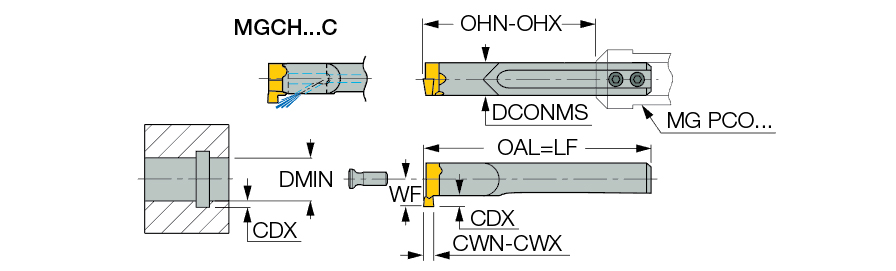

| Cutting Width Minimum (CWN) | 0.02″ | Connection Diameter Machine Side (DCONMS) | 0.236″ |
| Cutting Width Maximum (CWX) | 0.157″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 0.059″ | Application | | Int. Back Boring and Profiling | Int. Boring and Profiling | Int. Groove & Turn | Int. Grooving | Threading (Int.) | |
| Minimum Bore Diameter (DMIN) | 0.315″ | Body Material | Carbide |
| Functional Width (WF) | 0.189″ | Tool Type | Indexable Turn & Groov Tools |
| Overall Length (OAL) | 2.441″ | Measurement Type | Inch |
Product Features
| Family Description | CHAMGROOVE solid carbide bars for internal grooving, turning and threading, DMIN .315″. | Country of Origin | Israel |
| Remarks | The same tool applies on right and left machining |
Shipping Info
Package Weight
0.090
