GHAL 25.4-8

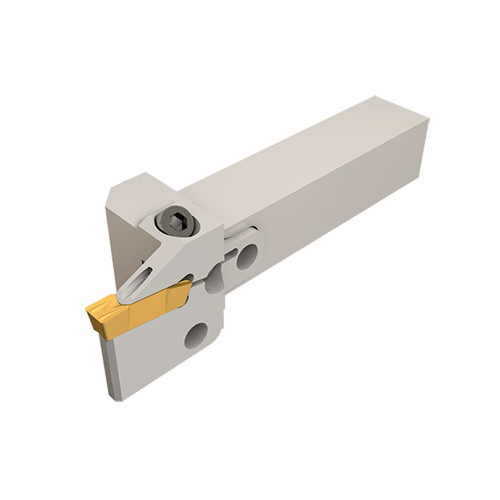

Grooving Toolholder; 1″ × 1″ Shank Size × 0.984″ Max Depth × 5″ OAL ; Steel

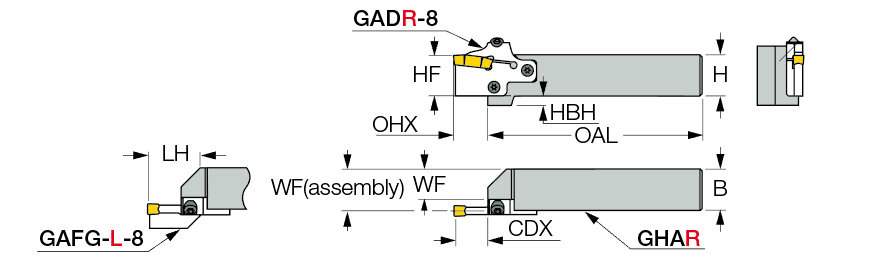

| Cutting Depth Maximum (CDX) | 0.984″ | Overall Length (OAL) | 5″ |
| Shank Height (H) | 1″ | Coolant Supply Property (CSP) | External |
| Shank Width (B) | 1″ | Body Material | Steel |
| Functional Width (WF) | 0.646″ | Tool Type | Square Shanks |
| Head Length (LH) | 1.77″ | Measurement Type | Inch |
Product Features
| Family Description | External holders for grooving and turning with GADR/L and GAFG adapters. | Country of Origin | Israel |
| Remarks | Adapters GADR/L-8 for turning and grooving, GAFG-R/L-8 for face-grooving f=f1+f2(see adapter dimensions) |
