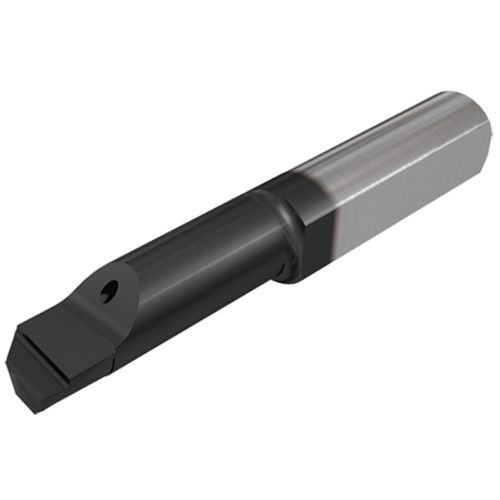

PICCO LX050.4-16R20 IC908
Boring Bar; 0.157″ Shank Dia. × 0.157″ Min Bore Dia. × 0.008″ Max Bore Depth × 0.6299″ LU × 1.181″ LF × 4″ OAL ; 0.008″ Corner Radius ; Carbide ; TiAlN
| Connection Diameter Machine Side (DCONMS) | 0.157″ | Cutting Depth Maximum (CDX) | 0.008″ |
| Maximum Bore Diameter (DMAX) | 0.49″ | Functional Width (WF) | 0.063″ |
| Minimum Bore Diameter (DMIN) | 0.157″ | Usable Length (LU) | 0.6299″ |
| Functional Length (LF) | 1.181″ | Overhang Minimum (OHN) | 0.123″ |
| Reduced Body Diameter Length (LDRED) | 0.63″ | Body Material | Carbide |
| Cutting Direction (HAND) | Left Hand | Cutting Edge Material | Carbide |
| Coating | TiAlN | Style | Corner Radius |
| Coolant Supply Property (CSP) | Through Hole | Length Group | Regular |
| Grade | IC908 | Series/List # | 601 |
| Application | | Int. Boring | | Tool Type | Solid Carbide Turn Tool |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Front End Width (a) | 0.142″ | Overall Length (OAL) | 4″ |
| Corner Radius (RE) | 0.008″ | Single / Double End | Single End |
Product Features

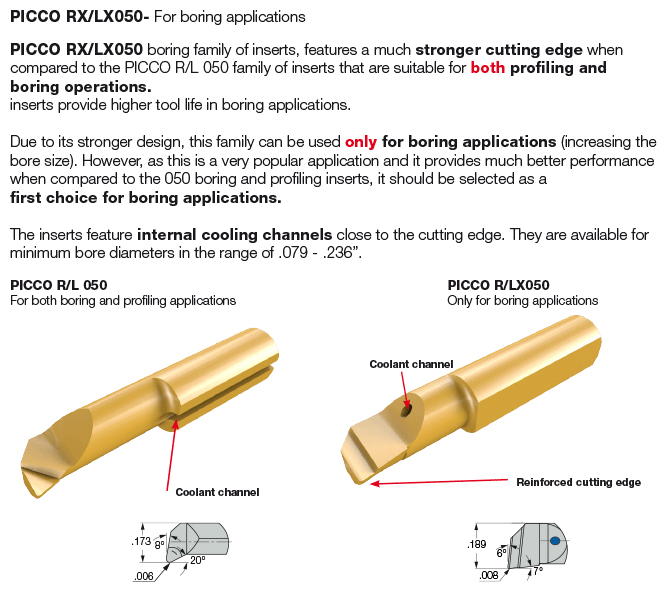

| Family Description | Reinforced boring inserts with internal coolant holes. | Country of Origin | Germany |
| Remarks | Left-hand inserts on request |
