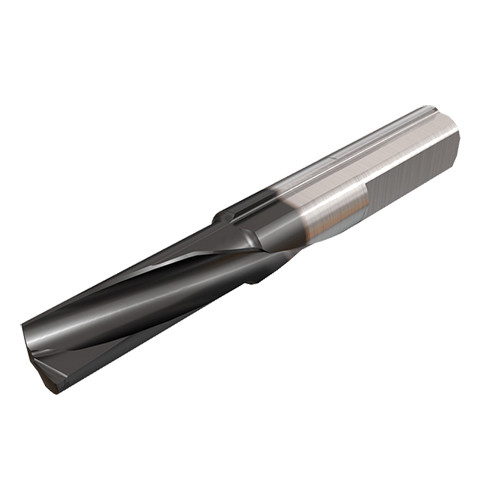

PICCO L-MF 6-5 L15 IC908

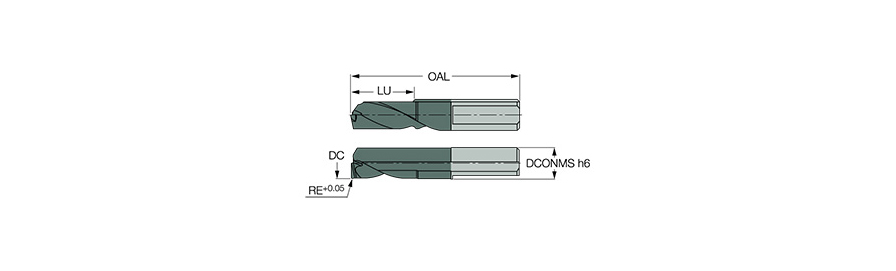

Boring Bar; 0.236″ Shank Dia. × 0.5906″ LU × 1.614″ LF × 4″ OAL ; 0.0118″ Corner Radius ; Carbide ; TiAlN
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Overhang Minimum (OHN) | 0.123″ |
| Maximum Bore Diameter (DMAX) | 0.49″ | Cutting Diameter (DC) | 0.197″ |
| Functional Length (LF) | 1.614″ | Body Material | Carbide |
| Cutting Direction (HAND) | Left Hand | Cutting Edge Material | Carbide |
| Coating | TiAlN | Style | Corner Radius |
| Coolant Supply Property (CSP) | External | Length Group | Regular |
| Grade | IC908 | Series/List # | 601 |
| Application | | Drilling Ext Face Int. Turning | | Tool Type | Multifunction drilling, turning and grooving tools |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Corner Radius (RE) | 0.0118″ | Overall Length (OAL) | 4″ |
| Usable Length (LU) | 0.5906″ | Single / Double End | Single End |
Product Features
| Family Description | Multifunction solid carbide tools, for drilling, facing, internal and external turning on Swiss and small CNC machines. Part of the PASSPORT system | Country of Origin | Israel |
| Remarks | Dmin can be .004 smaller by shifting tool center Applications: drilling; face turning; internal chamfering; internal turning/ boring; internal profiling; external chamfering; external turning |
Shipping Info
Package Weight
0.062
