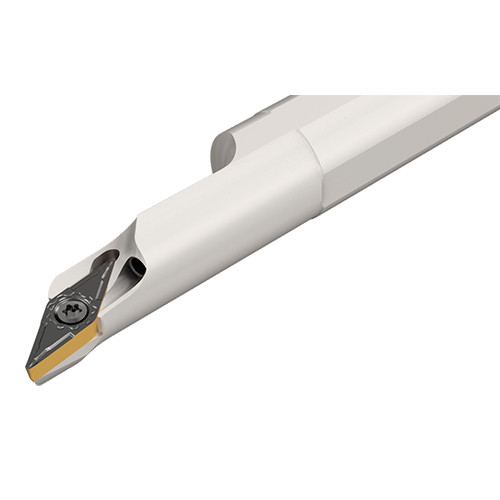

S16R SVJCR-11
Screw lock boring bars carrying 35° rhombic inserts with 7° clearance. S - Steel shank; A - Steel shank with coolant hole.

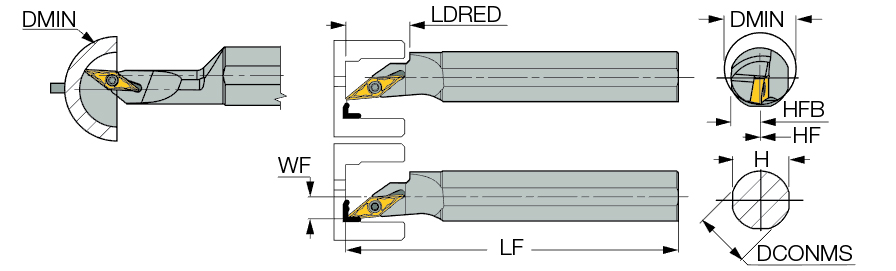

| Connection Diameter Machine Side (DCONMS) | 16 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 200 mm | Application | | Int. 35° Diamond 142° Approach | |
| Reduced Body Diameter Length (LDRED) | 20 mm | Rake Angle Axial (GAMP) | -5 Degrees |
| Shank Height (H) | 15 mm | Rake Angle Radial (GAMF) | -4 Degrees |
| Functional Width (WF) | 7 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | VC.. 1103 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 19 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | Screw lock boring bars carrying 35° rhombic inserts with 7° clearance. S - Steel shank; A - Steel shank with coolant hole. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Weight
0.665
