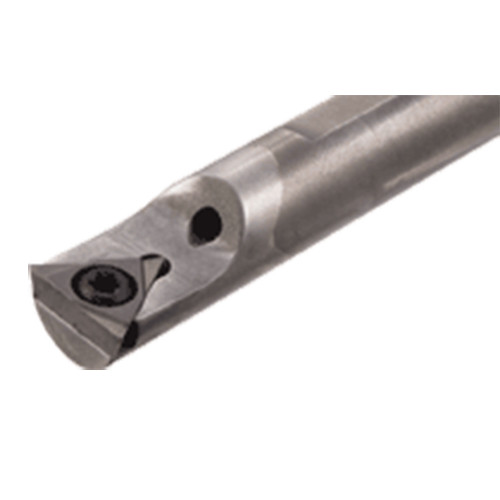

E10M STFPR-11X
Boring bars with steel (A) or carbide (E) shanks Carrying triangular TPGX 11° clearance inserts for small diameters.

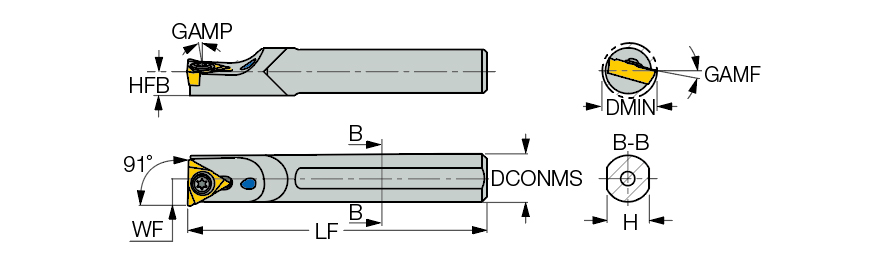

| Connection Diameter Machine Side (DCONMS) | 10 mm | Shank Type | E |
| Overall Length (OAL) | 150 mm | Application | | Int. 60° Triangle 91° Approach | |
| Shank Height (H) | 9 mm | Rake Angle Axial (GAMP) | 3 Degrees |
| Functional Width (WF) | 6 mm | Rake Angle Radial (GAMF) | -15 Degrees |
| Master Insert Identification (MIID) | TPGX 1103 | Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 11.4 mm | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Position | Internal |
| Coolant Supply Property (CSP) | Coolant Thru | Measurement Type | Metric |
Product Features
| Family Description | Boring bars with steel (A) or carbide (E) shanks Carrying triangular TPGX 11° clearance inserts for small diameters. | Country of Origin | Israel |
Shipping Info
Package Weight
0.337
