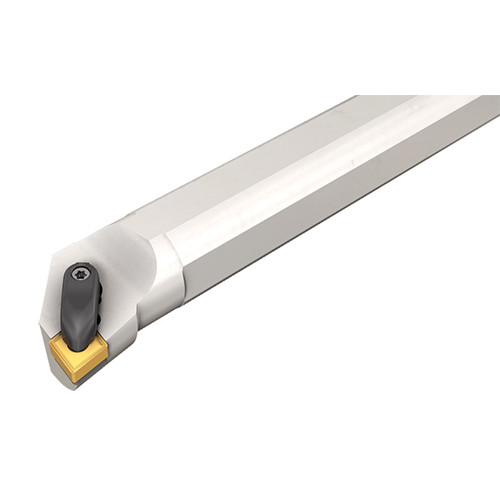

S32T DCLNL-12
Int. Turning Tool ; 300 mm OAL ; 28 mm Shank Height ; 32 mm Shank Dia. ; 40 mm Min Bore Dia. ; Steel

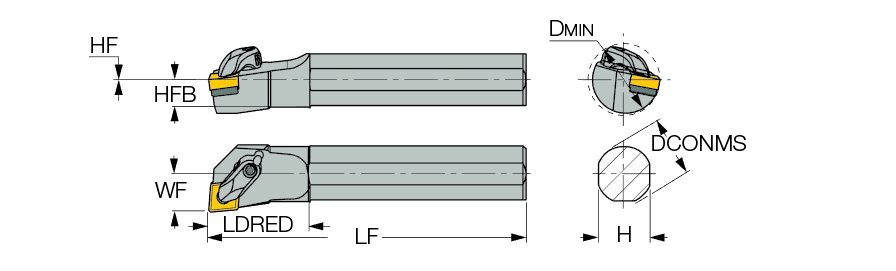

| Connection Diameter Machine Side (DCONMS) | 32 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 300 mm | Application | | Int. 80° Diamond 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 45 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 28 mm | Rake Angle Radial (GAMF) | -10 Degrees |
| Functional Width (WF) | 22 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CNMG 1204.. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 40 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
Product Features
| Family Description | R-Clamp boring bars carrying negative 80° diamond inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
3.918
