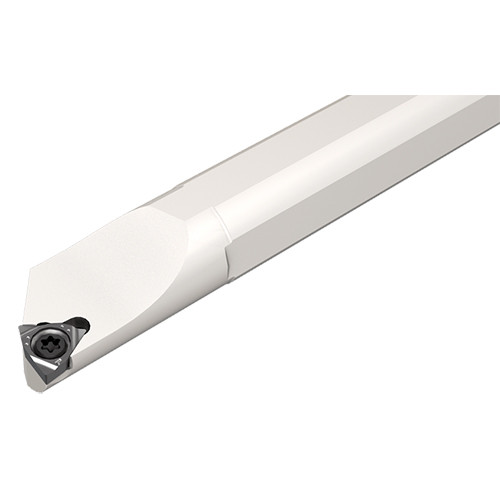

E06H SWUBR-06
Int. Turning Tool ; 100 mm OAL ; 5.2 mm Shank Height ; 6 mm Shank Dia. ; 6.5 mm Min Bore Dia. ; Carbide

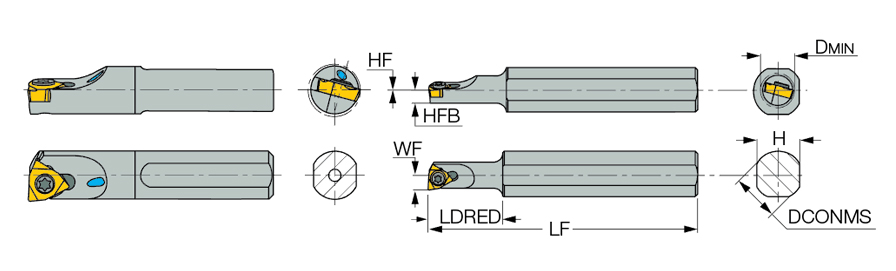

| Connection Diameter Machine Side (DCONMS) | 6 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 100 mm | Application | | Int. 80° Trigon 93° Approach | |
| Shank Height (H) | 5.2 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Width (WF) | 3.3 mm | Rake Angle Radial (GAMF) | -15 Degrees |
| Master Insert Identification (MIID) | WBMT 060101L | Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 6.5 mm | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Position | Internal |
| Coolant Supply Property (CSP) | Coolant Thru | Measurement Type | Metric |
Product Features
| Family Description | Screw clamp miniature boring bars carrying small WBMT trigon inserts. S - Steel shank; E - Carbide shank with coolant hole. | Country of Origin | Israel |
| Remarks | Use right-hand WBMT 06...R inserts on left-hand tools and left-hand WBMT 06...L inserts on right-hand tools. |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.108
