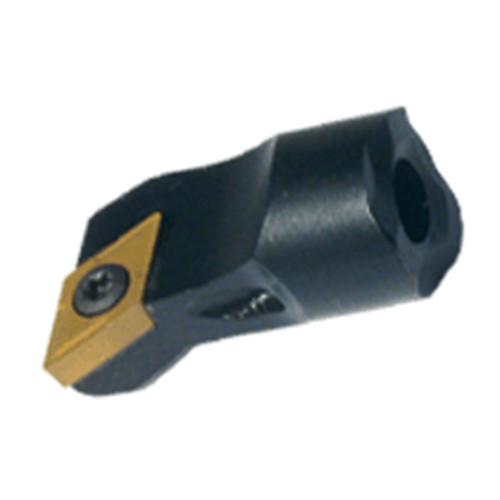

E-SDUCR 10-2 HEAD
Interchangeable screw clamped boring heads carrying the positive 7° clearance 55° rhombic inserts mounted on carbide bars.

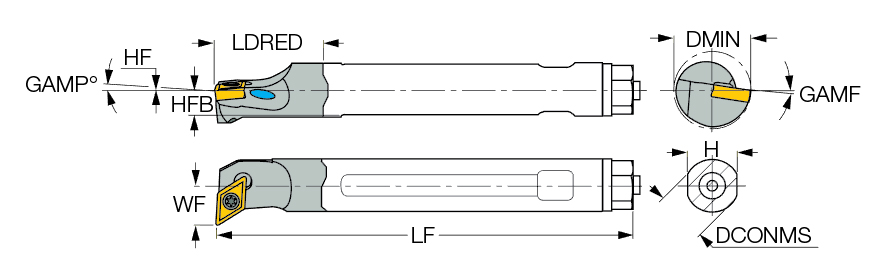

| Connection Diameter Machine Side (DCONMS) | 5/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 7″ | Shank Type | Round Shank w/3 Flats |
| Reduced Body Diameter Length (LDRED) | 1.17″ | Application | | Int. 55° Diamond 93 95° Approac | |
| Shank Height (H) | 0.59″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Width (WF) | 0.43″ | Rake Angle Radial (GAMF) | -8 Degrees |
| Master Insert Identification (MIID) | DCMT 2-0-PF | Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 0.787″ | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | Interchangeable screw clamped boring heads carrying the positive 7° clearance 55° rhombic inserts mounted on carbide bars. | Country of Origin | Israel |
Shipping Info
Package Weight
0.097
