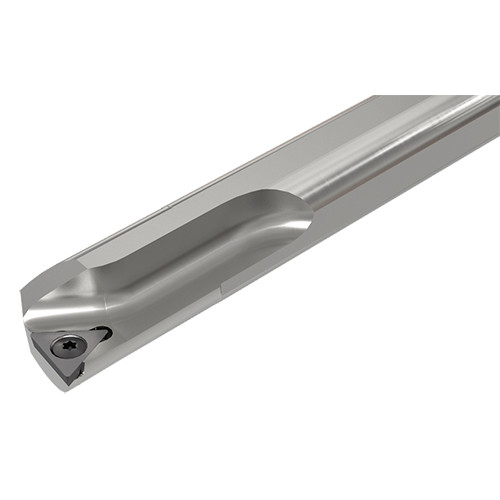

A10K STLPR-11
Screw lock boring bars carrying triangular inserts with 11° clearance. S - Steel shank; A - Steel shank with coolant hole.

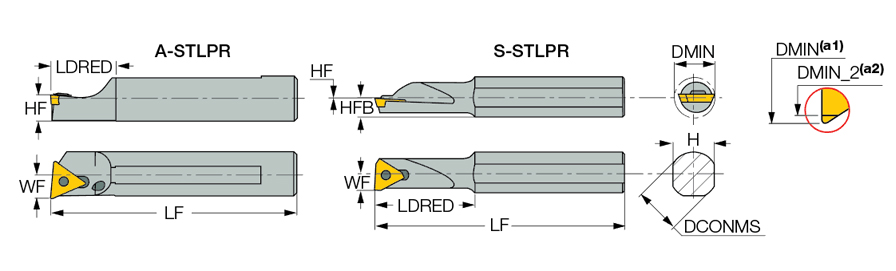

| Connection Diameter Machine Side (DCONMS) | 10 mm | Application | | Int. 60° Triangle 95° Approach | |
| Overall Length (OAL) | 125 mm | Rake Angle Axial (GAMP) | 3 Degrees |
| Reduced Body Diameter Length (LDRED) | 18 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Shank Height (H) | 9.5 mm | Minimum Bore Diameter_2 (DMIN_2) | 12 mm |
| Functional Width (WF) | 6 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TPMT 110204-PF | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Cutting Position | Internal |
| Coolant Supply Property (CSP) | Coolant Thru | Measurement Type | Metric |
| Shank Type | Round Shank w/3 Flats |
Product Features
| Family Description | Screw lock boring bars carrying triangular inserts with 11° clearance. S - Steel shank; A - Steel shank with coolant hole. | Country of Origin | Israel |
| Remarks | (a1) When used with insert TP.. 110204-.. (a2) When used with insert TPG. 110204-XL |
Shipping Info
Package Weight
0.183
