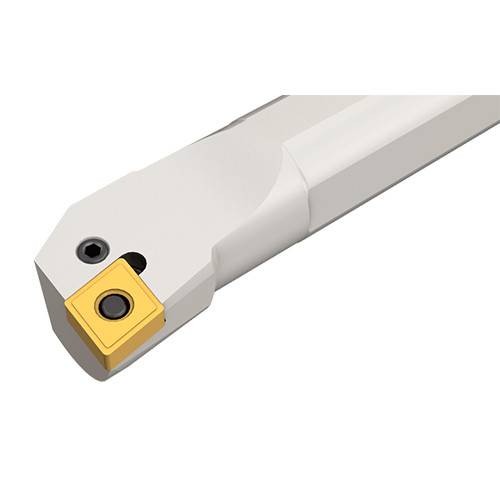

S40U PCLNR-12
Lever lock boring bars carrying negative 80° rhombic inserts.

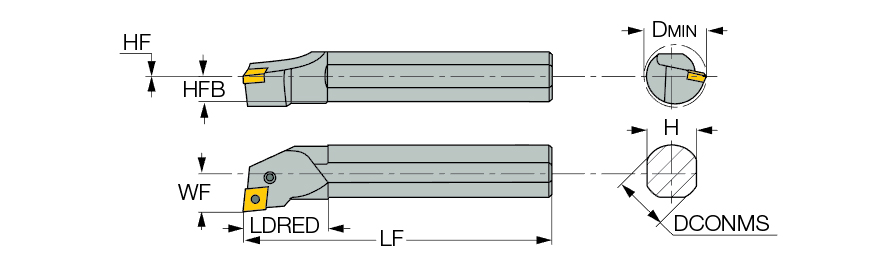

| Connection Diameter Machine Side (DCONMS) | 40 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 350 mm | Application | | Int. 80° Diamond 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 51 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 36 mm | Rake Angle Radial (GAMF) | -12 Degrees |
| Functional Width (WF) | 27 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CNMG 1204.. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 49 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | Lever lock boring bars carrying negative 80° rhombic inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
7.125
