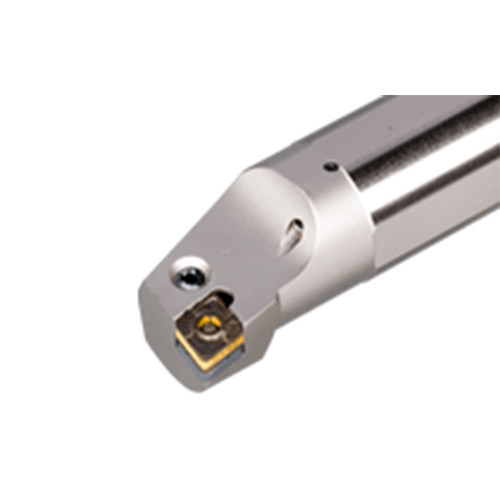

S50W PCLNR-16X

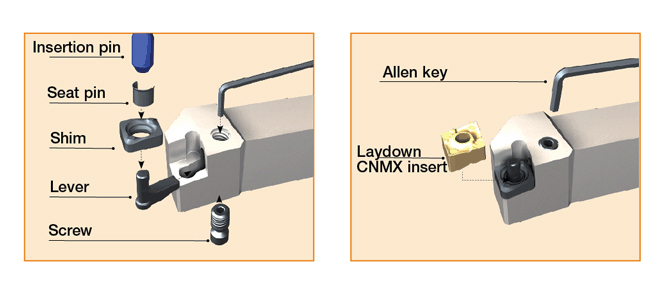

Lever lock boring bars carrying negative CNMX/CNMG 80° rhombic inserts, for heavy internal turning applications.

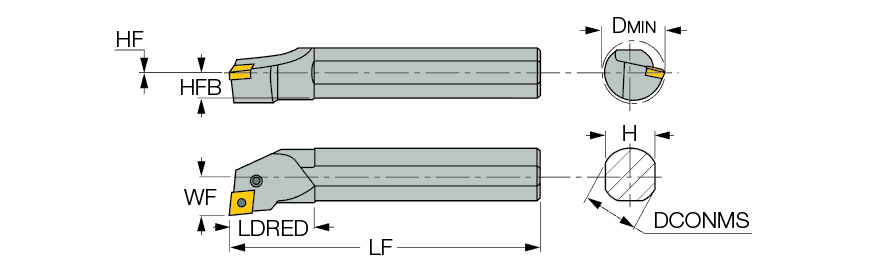

| Connection Diameter Machine Side (DCONMS) | 50 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 450 mm | Application | | Int. 80° Diamond 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 70 mm | Rake Angle Axial (GAMP) | -6.9 Degrees |
| Shank Height (H) | 47 mm | Rake Angle Radial (GAMF) | -10.4 Degrees |
| Functional Width (WF) | 35 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CNMX 1607, CNMG 1606 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 63 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | Lever lock boring bars carrying negative CNMX/CNMG 80° rhombic inserts, for heavy internal turning applications. | Country of Origin | Korea |
Shipping Info
Package Weight
14.405
