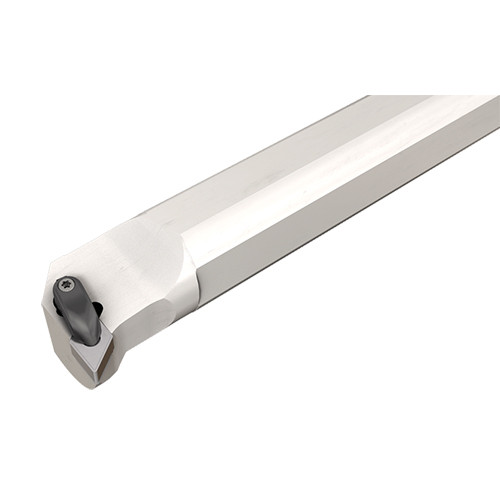

S40U DDUNL-15
Int. Turning Tool ; 350 mm OAL ; 36 mm Shank Height ; 40 mm Shank Dia. ; 48 mm Min Bore Dia. ; Steel

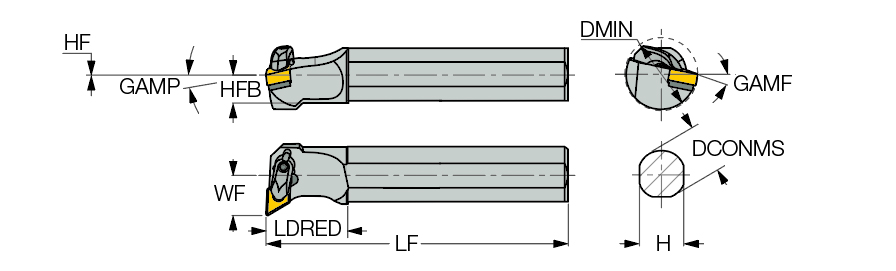

| Connection Diameter Machine Side (DCONMS) | 40 mm | Shank Type | Round Shank w/3 Flats |
| Functional Length (LF) | 350 mm | Application | | Int. 55° Diamond 93 95° Approac | |
| Overall Length (OAL) | 350 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Reduced Body Diameter Length (LDRED) | 50 mm | Rake Angle Radial (GAMF) | -10 Degrees |
| Shank Height (H) | 36 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 27 mm | Body Material | Steel |
| Master Insert Identification (MIID) | DNMG 1506 | Cutting Position | Internal |
| Minimum Bore Diameter (DMIN) | 48 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | R-Clamp boring bars carrying ISO negative DNMG inserts. | Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Weight
7.158
