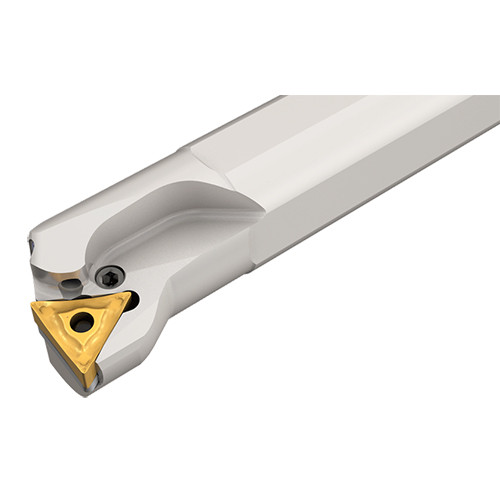

A16M PTFNR-16G
Int. Turning Tool ; 150 mm OAL ; 15 mm Shank Height ; 16 mm Shank Dia. ; 20 mm Min Bore Dia. ; Steel

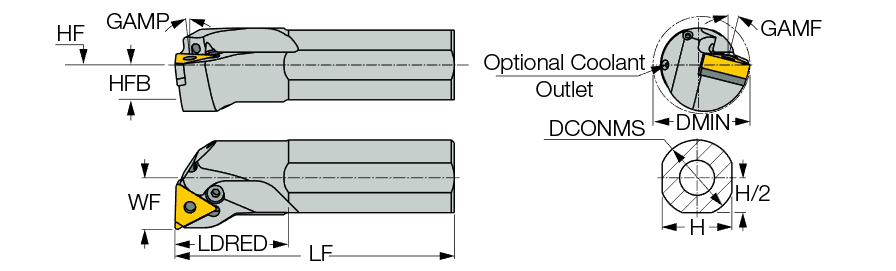

| Connection Diameter Machine Side (DCONMS) | 16 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 150 mm | Application | | Int. 60° Triangle 91° Approach | |
| Reduced Body Diameter Length (LDRED) | 31 mm | Rake Angle Axial (GAMP) | -12 Degrees |
| Shank Height (H) | 15 mm | Rake Angle Radial (GAMF) | -16 Degrees |
| Functional Width (WF) | 11 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TNMG 1604 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 20 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | 91° lead angle lever lock boring bars carrying negative TNMX or TNMG triangular inserts. | Country of Origin | Israel |
| Remarks | Use TTX 3 seat for TNMX 1606.. inserts and TTN 3 seat for TNMG 1604.. inserts |
Shipping Info
Package Weight
0.448
