AVC-D80-DDUNL-15T-VH

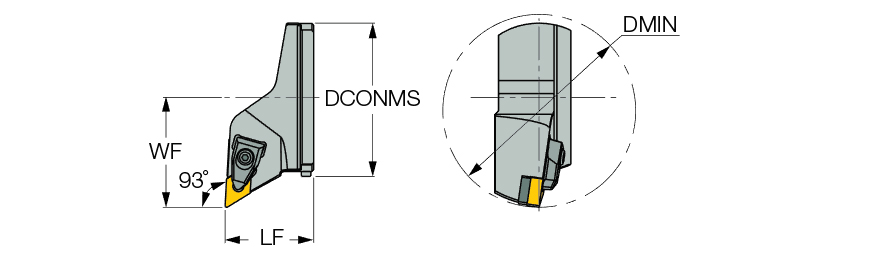

| Connection Diameter Machine Side (DCONMS) | 3.031″ | Coolant Supply Property (CSP) | External |
| Functional Length (LF) | 1.811″ | Shank Type | Round Shank w/3 Flats |
| Functional Width (WF) | 2.244″ | Application | | Int. 55° Diamond 93 95° Approac | |
| Master Insert Identification (MIID) | DNMG 442-F3M | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 3.937″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand |
Product Features

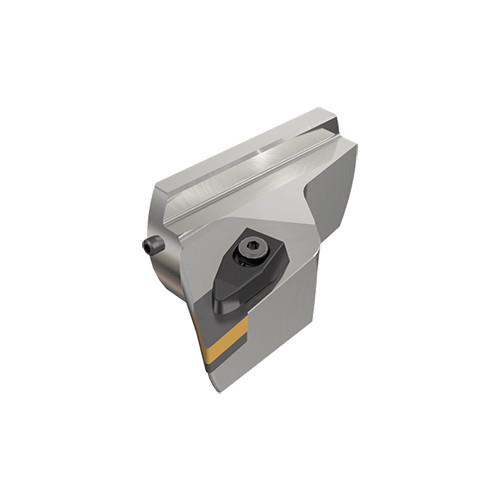

| Family Description | Interchangeable boring heads carrying 55° rhombic inserts. | Country of Origin | China |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.992
