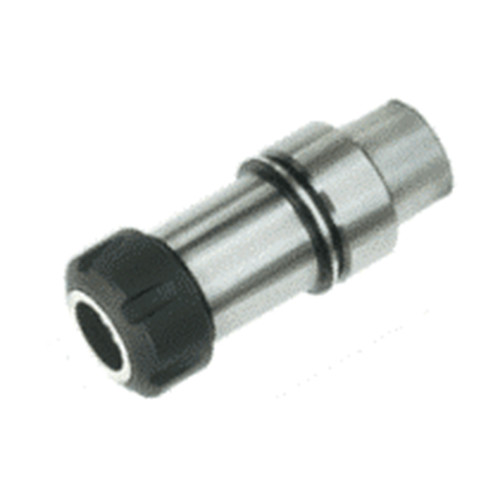

HSK E32 ER16X60
DIN6499 ER collet chucks with HSK DIN69893 form E tapered shanks.

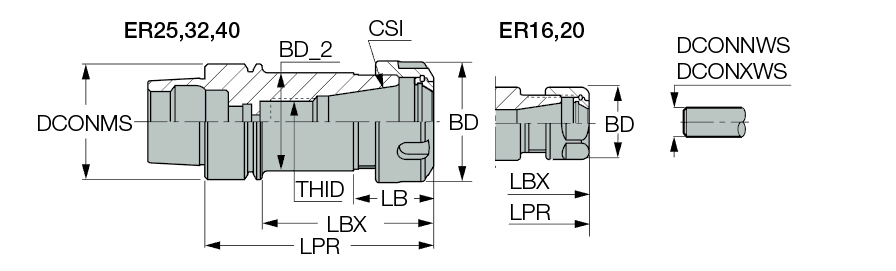

| Shank Size (SS) | 32 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER16 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.02″ |
| Body Diameter (BD) | 1.102″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.394″ |
| Protruding Length (LPR) | 2.362″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1.26″ | Body Material | Steel |
| Tool Type | HSK | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | DIN6499 ER collet chucks with HSK DIN69893 form E tapered shanks. | Country of Origin | Israel |

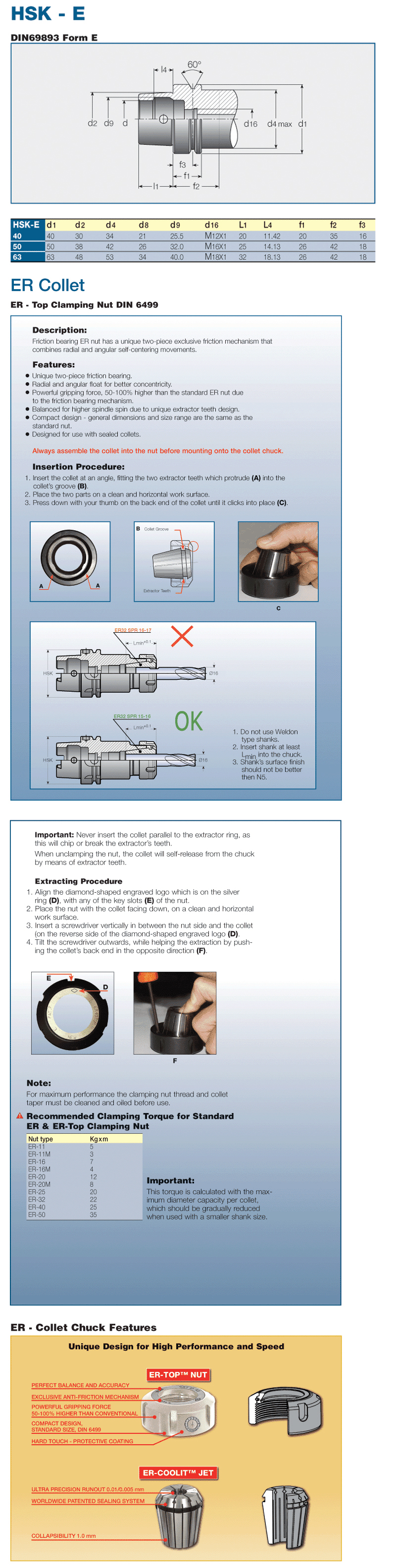

| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions, Click on More Info. |
Shipping Info
Package Weight
0.564
