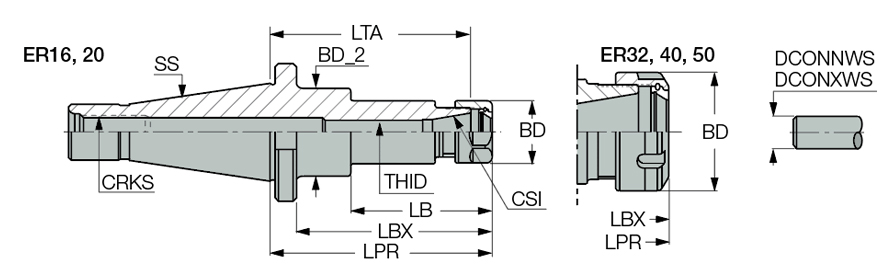

| Shank Size (SS) | 40 | Style | ER40 |
| Connection Size (CSI) | ER40 | Coolant Supply Property (CSP) | Through Hole |
| Body Diameter (BD) | 2.48″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.12″ |
| Protruding Length (LPR) | 2.156″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 1.025″ |
| Connection Diameter Machine Side (DCONMS) | 40″ | Measurement Type | Inch |
| Tool Type | ISO A.N.S.I B.5.18-1972 (ISO-ER) | Body Material | Steel |
Product Features

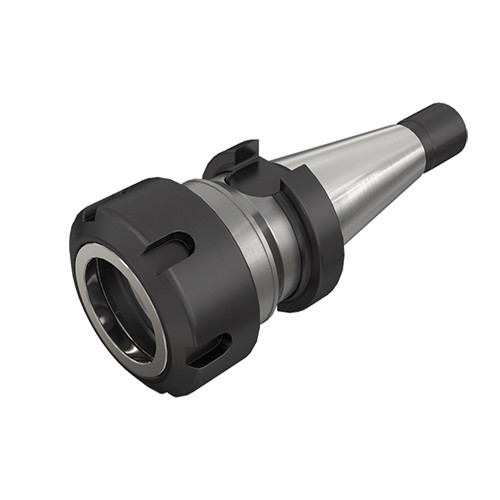

| Family Description | DIN 6499 ER Collet chuck with an ISO tapered shank. | Country of Origin | Italy |
Shipping Info
LocalField10
0
Package Length
6.20000
Package Width
2.75000
Package Height
2.75000
Package Weight
2.4
