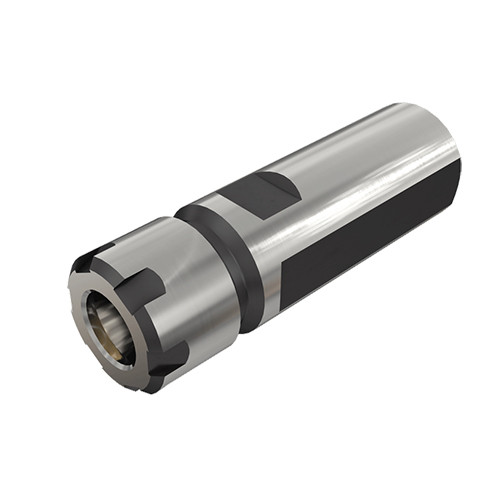

ST 16X 38 ER11 MF
DIN 6499 ER mini collet chucks with cylindrical shanks and a clamping flat for Swiss-type CNC lathes.

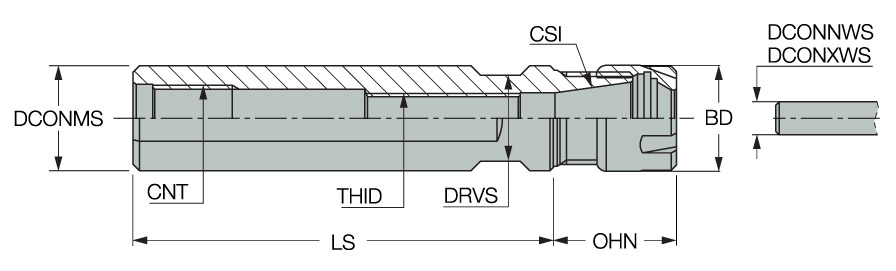

| Shank Size (SS) | 16 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER11 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Body Diameter (BD) | 16 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 7 mm |
| Protruding Length (LPR) | 18.5 mm | Measurement Type | Metric |
| Shank Length (LS) | 38 mm | Drive Size (DRVS) | 14 mm |
| Tool Type | Cylindrical Shanks | Body Material | Steel |
Product Features
| Family Description | DIN 6499 ER mini collet chucks with cylindrical shanks and a clamping flat for Swiss-type CNC lathes. | Country of Origin | Israel |
Shipping Info
Package Weight
0.150
