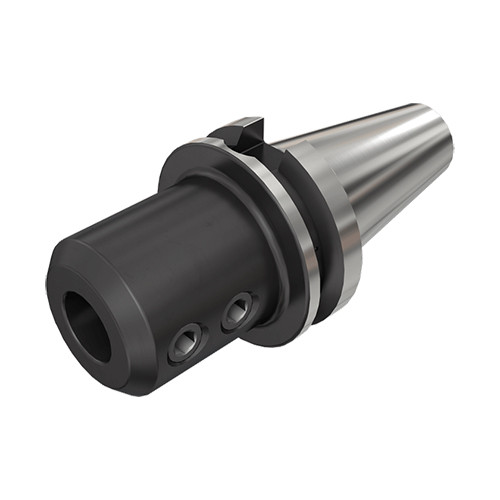

BT40 EM 25X105

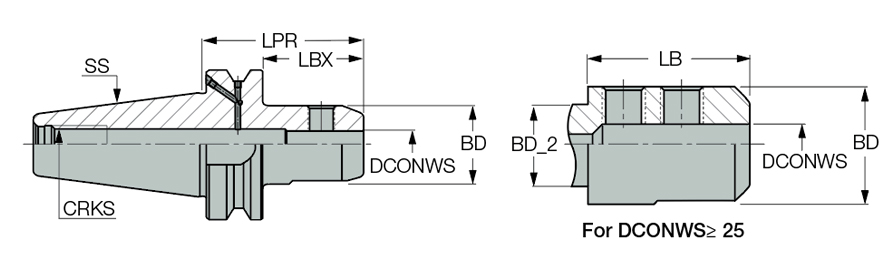

| Connection Size (CSI) | R8 | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 25 mm | Shank Size (SS) | 40 |
| Body Diameter (BD) | 65 mm | Tool Type | BT |
| Protruding Length (LPR) | 105 mm | Body Length (LB) | 68 mm |
| Overall Length (OAL) | 170.4 mm | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | BT |
Product Features

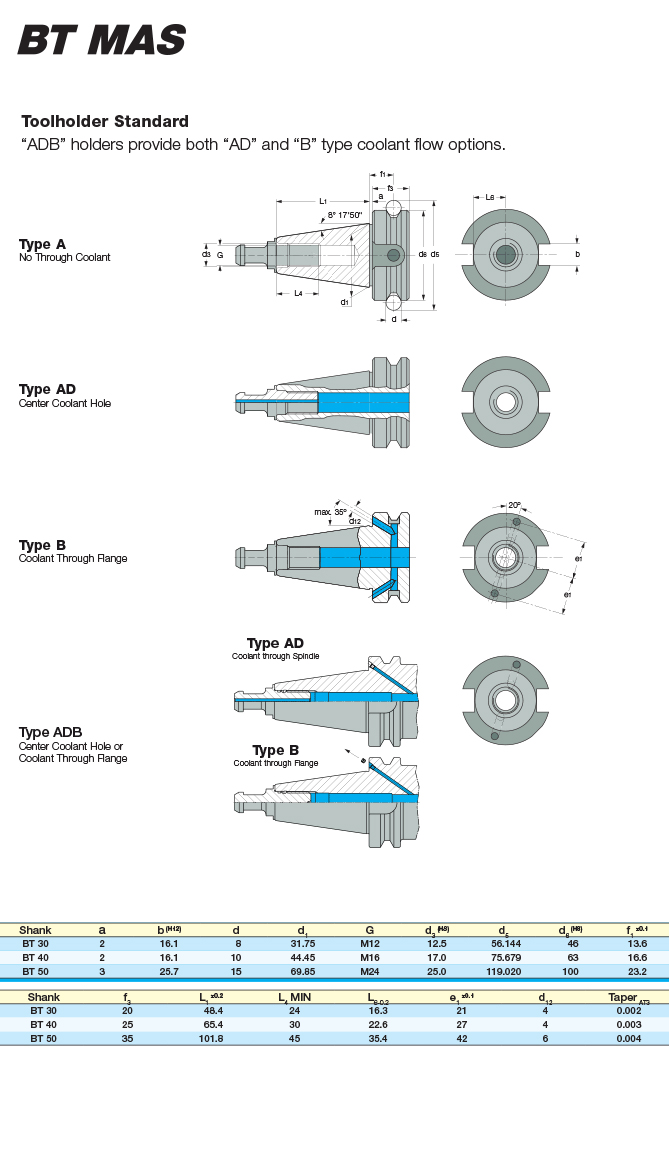

| Family Description | DIN6359 / DIN 1835 form B Weldon endmill holders with BT MAS-403 ADB tapered shanks | Country of Origin | India |
Shipping Info
Additional Fees and Notes
0
Package Weight
5.783
