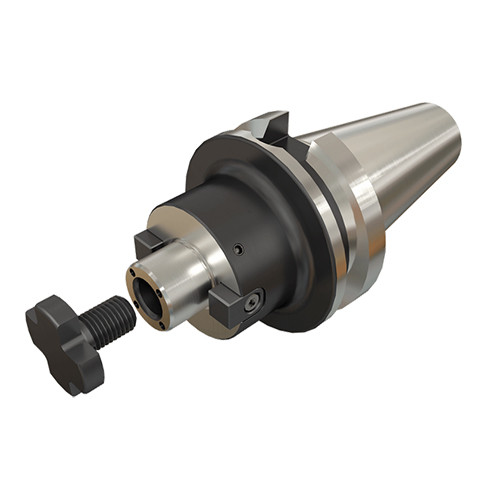

BT50 SEM 16X100C

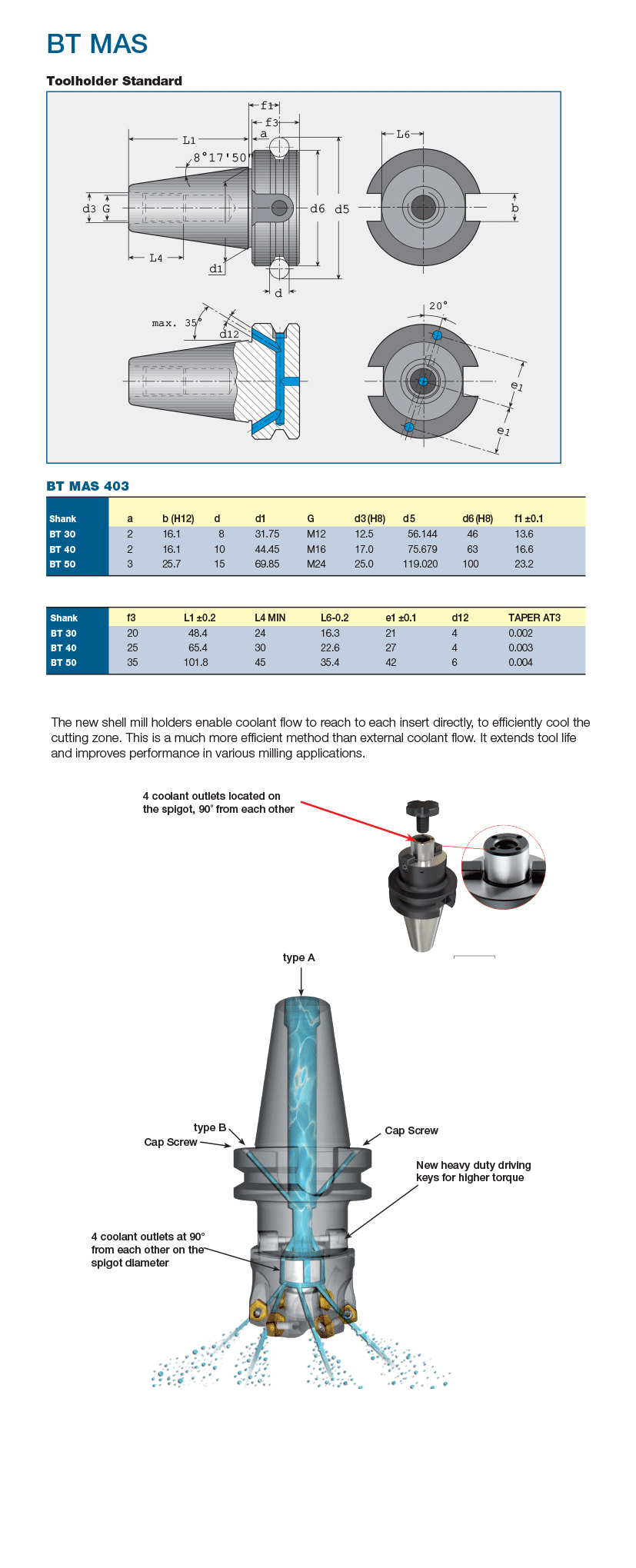

ISO 3937 shell mill holders with coolant holes and BT MAS-403 ADB tapered shanks.

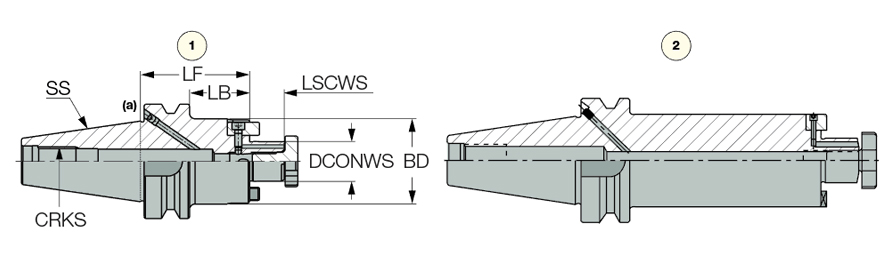

| Connection Diameter Machine Side (DCONMS) | 50 mm | Hex Size | 5/8″ |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Clamping Length Workpiece Side (LSCWS) | 17 mm |
| Shank Size (SS) | 50 | Material | Steel |
| Functional Length (LF) | 100 mm | Shell Mill Pilot Size | 1-1/2″ |
| Body Length (LB) | 100 mm | Flange Diameter (DF) | 3.380″ |
| Body Diameter (BD) | 38 mm | Tool Type | BT |
| Shank Standard | BT | Measurement Type | Metric |
| Shank Type | CAT | Body Material | Steel |
| Overhang Length (L2) | 6″ | Protruding Length (LPR) | 6″ |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | BT |
Product Features
| Family Description | ISO 3937 shell mill holders with coolant holes and BT MAS-403 ADB tapered shanks. | Country of Origin | Italy |
| Remarks | (a) For coolant through flange the plug screw must be removed from the flange cooling hole (use a 2 mm hex key). |
Shipping Info
Package Weight
9.409
