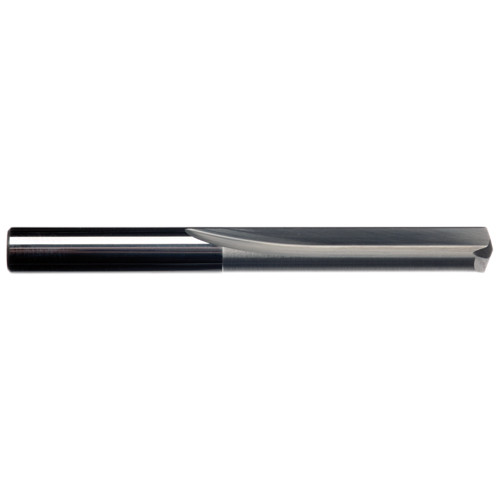

5.5 mm Dia. × 5.5 mm Shank × 28 mm Flute Length × 66 mm OAL, 2xD Flute, External Coolant, Plain Solid Carbide Drill
| Drill Bit Size / Cutting Diameter (DC) | 5.5 mm | Measurement Type | Metric |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.5 mm | Series/List # | D40 |
| Connection Diameter Machine Side (DCONMS) | 5.5 mm | Length Chip Flute (LCF) | 28 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 66 mm |
| Shank Type | Round | Flute Count (NOF) | 2 |
| Cutting Edge Material | Carbide | Cutting Direction (HAND) | Right Hand |
| Tool Type | Short Length | Body Material | Carbide |
| Grade | IM100 Uncoated |
Product Features
| Remarks | •Great results in hardened steels, super alloys, and titanium.•Extra web thickness for improved strength.•Maximum hole depth should not exceed 75″ of the flute length. | Country of Origin | Usa |
Shipping Info
LocalField10
0
Package Weight
0.040
