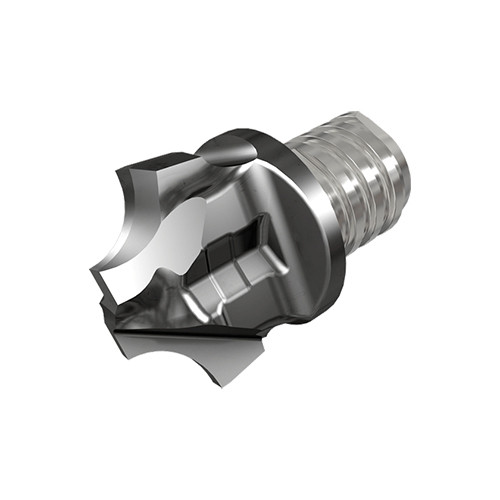

MM HR3.0/125-6.5-2T08 IC908
Interchageable 2 flute solid carbide corner round milling heads

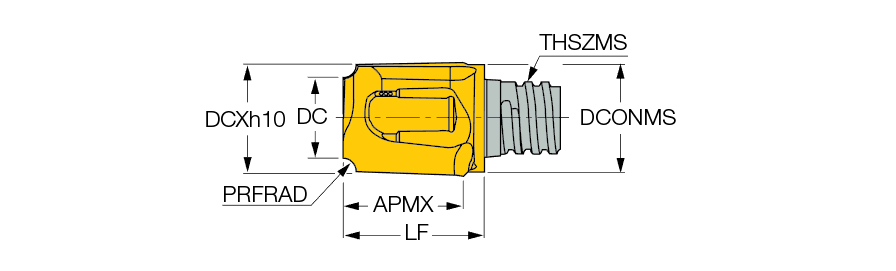

| Application | | Corner Rounding | | Overall Length (OAL) | 0.927″ |
| Cutting Diameter (DC) | 0.256″ | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Corner Radius (RE) | 0.1181″ | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Tool Type | Solid corner rounding endmills |
| Cutting Diameter Maximum (DCX) | 1/2″ | Body Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.472″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Connection Diameter Machine Side (DCONMS) | 0.453″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 0.614″ |
Product Features
| Family Description | Interchageable 2 flute solid carbide corner round milling heads | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
