DR067>073-183-50-11/12CA

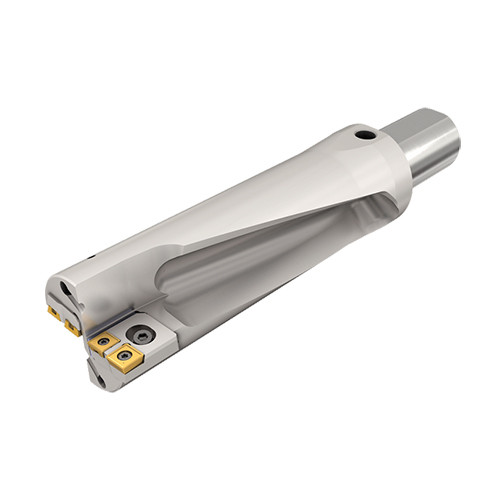

Large diameter drills with cartridges. Each drill is supplied with several shim plates. By mounting these plates, the drill's diameter can be changed.
| Cutting Diameter (DC) | 67 mm | Overall Length (OAL) | 320 mm |
| Usable Length (LU) | 183 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Cutting Diameter Minimum (DCN) | 67 mm |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Cutting Diameter Maximum (DCX) | 74 mm |
| Shank Size (SS) | 1″ | Flange Diameter (DF) | 69 mm |
| Tool Type | indexable head drills | Measurement Type | Metric |
| Protruding Length (LPR) | 240 mm | Body Material | Steel |
| Shank Length (LS) | 80 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 237.45 mm |
Product Features
| Family Description | Large diameter drills with cartridges. Each drill is supplied with several shim plates. By mounting these plates, the drill's diameter can be changed. | Country of Origin | Korea |
| Remarks | Hole tolerance: D±0.5 in average conditions applied. It can be higher or lower according to machine and tooling conditions For each drill diameter assembly parts, click on More Info. |
Shipping Info
Package Weight
11.524
