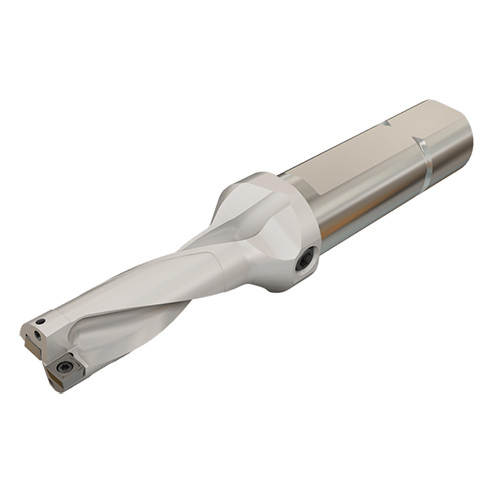

DR1500-4500-150-12-3D-N
Indexable Insert Drill; 1-1/2″ Dia. × 4-1/2″ LU × 1-1/2″ Shank Dia. × 8.96″ OAL ; Steel

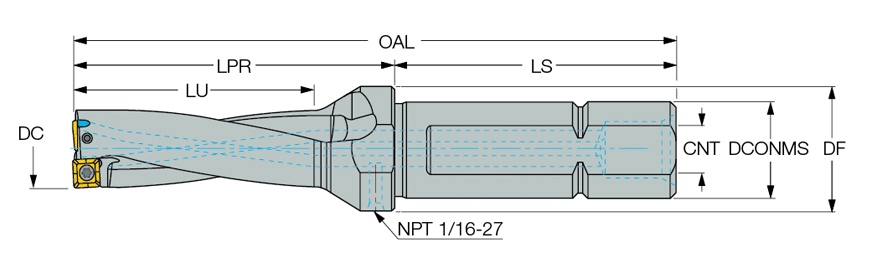

| Cutting Diameter (DC) | 1-1/2″ | Overall Length (OAL) | 8.96″ |
| Usable Length (LU) | 4-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Cutting Diameter Maximum (DCX) | 1.65″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Flange Diameter (DF) | 1.969″ |
| Shank Size (SS) | 1″ | Measurement Type | Inch |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | SOMT 120408-DT |
| Protruding Length (LPR) | 5.96″ | Body Material | Steel |
| Shank Length (LS) | 3″ | Decimal Equivalent | 1.5″ |
| Functional Length (LF) | 5.915″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | DR-TWIST indexable square insert drills with coolant holes. Drilling depth 3xD. | Country of Origin | Israel |
| Remarks | Hole tolerance D+.009/-.002 in average conditions applied. It can be higher or lower according to machine and tooling conditions For eccenter sleeves, see pages.. |
Shipping Info
Additional Fees and Notes
0
Package Length
9.25000
Package Width
2.50000
Package Height
2.50000
Package Weight
3.411
Related Documentation
Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
