ISD-EC 6.299-6.653

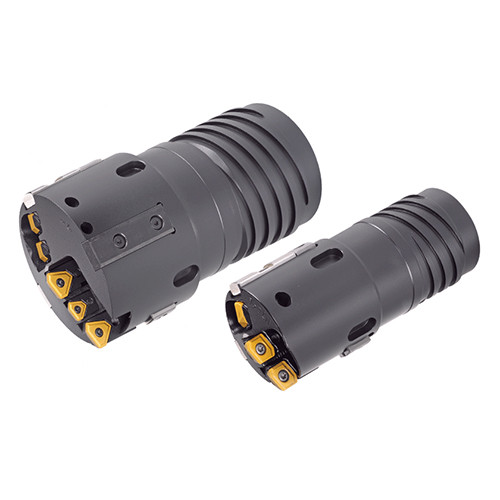

Deep single tube drills with external 4-start thread connection and cartridges. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.

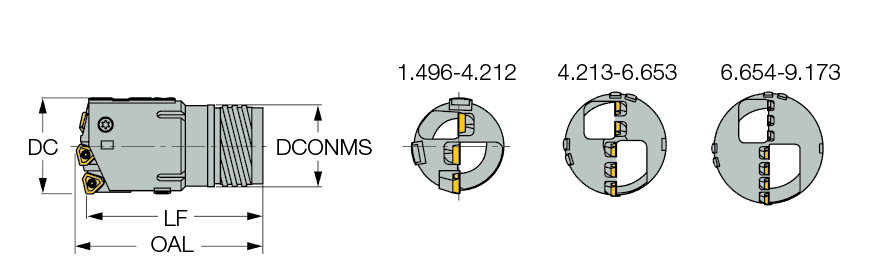

| Application | | Deep Drilling | | Connection Thread Size (Ts) | TS-I28 |
| Connection Diameter Machine Side (DCONMS) | 5.866″ | Cutting Diameter Minimum (DCN) | 6.299″ |
| Shank Size (SS) | 1″ | Cutting Diameter Maximum (DCX) | 6.653″ |
| Tool Type | Deep Hole / Gun Drill | Measurement Type | Inch |
| Overall Length (OAL) | 9.685″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Deep single tube drills with external 4-start thread connection and cartridges. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | Country of Origin | Japan |
| Remarks | Important: The specified drilling range using the original outer cartridge and pad may be enlarged by using optional outer cartridges and pads as specified on More Info For quotation form and user guide, click on More Info |
