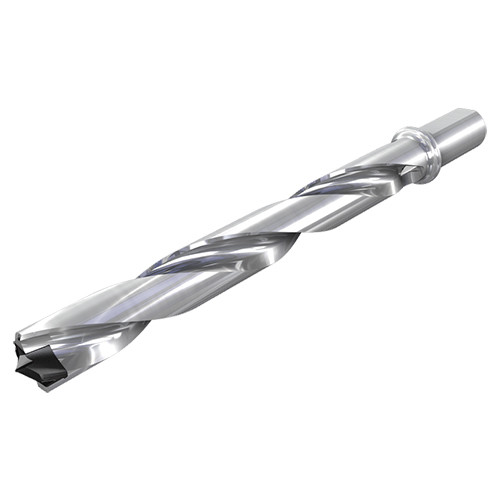

DFN 340-272-32A-8D-IQ
Drill body with exchangeable heads, internal coolant holes and flat shank. Drilling depth: 8xD

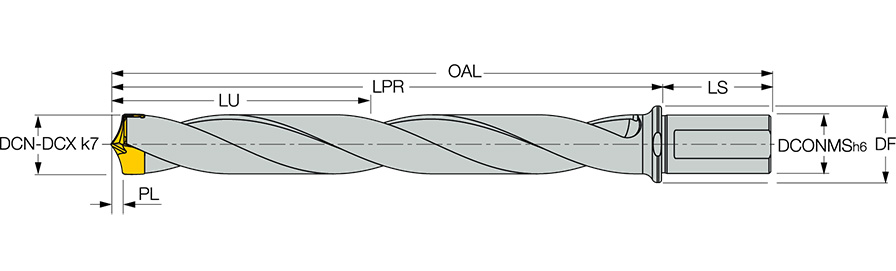

| Cutting Diameter (DC) | 34 mm | Shank Length (LS) | 60 mm |
| Usable Length (LU) | 272 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Length Group | 8xD | Cutting Item Count (CICT) | 1 |
| Shank Type | Weldon | Measurement Type | Metric |
| Application | | Drilling | | Master Insert Identification (MIID) | HFP 340 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 7.62 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 34.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 34 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 34.93 mm | Flange Diameter (DF) | 42 mm |
| Protruding Length (LPR) | 311.2 mm | Body Diameter Reduced (BDRED) | 42 mm |
| Functional Length (LF) | 303.58 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 371.2 mm |
Product Features
| Family Description | Drill body with exchangeable heads, internal coolant holes and flat shank. Drilling depth: 8xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
3.812
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body. Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
