DCN 1102-882-125A-8D

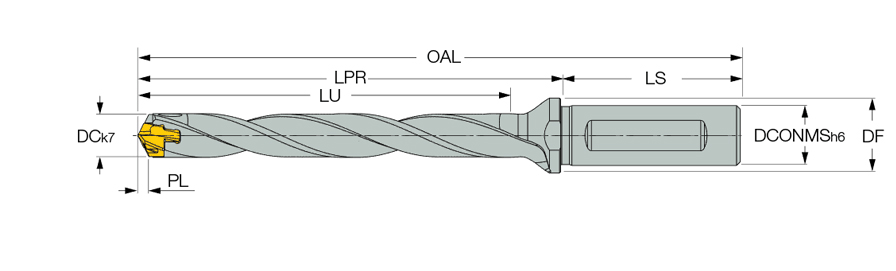

Drill; 1.102″ Dia. × 1.102″ Min. Dia. × 1.141″ Max. Dia. × 1-1/4″ Shank Dia. × 12.92″ OAL × 8.986″ LU × 2.36″ Shank Length ; Weldon Shank ; Series STAW
| Cutting Diameter (DC) | 1.102″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 8.986″ | Cutting Item Count (CICT) | 1 |
| Shank Type | Weldon | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 280 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.167″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 28.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 1.102″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 1.141″ | Flange Diameter (DF) | 1.653″ |
| Protruding Length (LPR) | 10.56″ | Decimal Equivalent | 1.102″ |
| Functional Length (LF) | 10.359″ | Body Diameter Reduced (BDRED) | 1.653″ |
| Overall Length (OAL) | 12.92″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Length (LS) | 2.36″ |
Product Features
| Family Description | SUMOCHAM 8xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Prior to using the 8xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill. Not required if HCP or QCP drilling head is used Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Additional Fees and Notes
0
Package Weight
2.791
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
