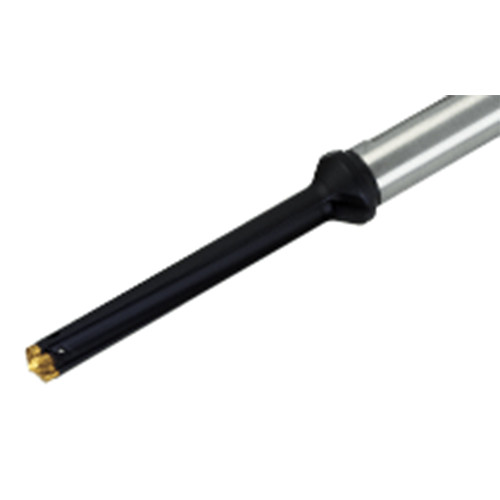

DCM 130-104-16A-8D
Drill body with exchangeable heads, internal coolant holes and one flat shank drilling depth: 8xD

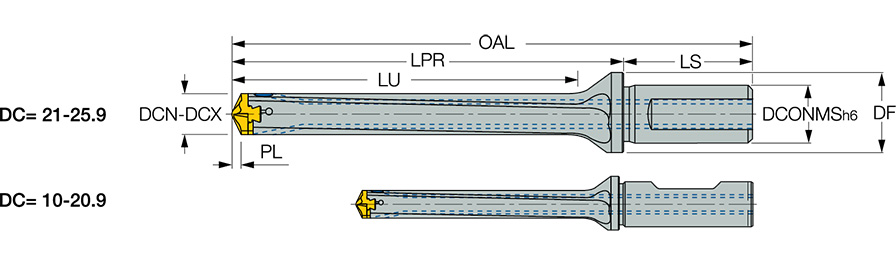

| Usable Length (LU) | 104 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Cutting Item Count (CICT) | 1 |
| Tool Type | Indexable Insert Drills | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Master Insert Identification (MIID) | IDI 130-SG |
| Insert Seat Size Code (SSC) | 13.0 | Point Length (PL) | 2.37 mm |
| Cutting Diameter Minimum (DCN) | 13 mm | Series/List # | STAW |
| Cutting Diameter Maximum (DCX) | 13.9 mm | Angle | 140 Degrees |
| Protruding Length (LPR) | 121.5 mm | Body Material | Steel |
| Functional Length (LF) | 119.13 mm | Flange Diameter (DF) | 20 mm |
| Overall Length (OAL) | 169.5 mm | Body Diameter Reduced (BDRED) | 20 mm |
| Shank Length (LS) | 48 mm | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Drill body with exchangeable heads, internal coolant holes and one flat shank drilling depth: 8xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body Drill tolerance: k7 |
Shipping Info
Package Weight
0.408
Related Documentation
Do not monut smaller drilling heads than specificed range for drill body. Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
