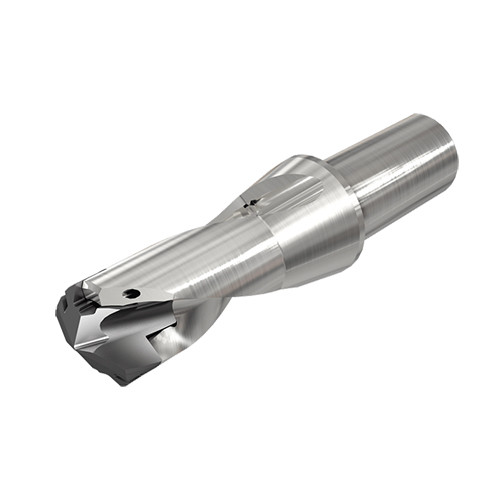

DCN 220-033-25A-1.5D
SUMOCHAM 1.5xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.

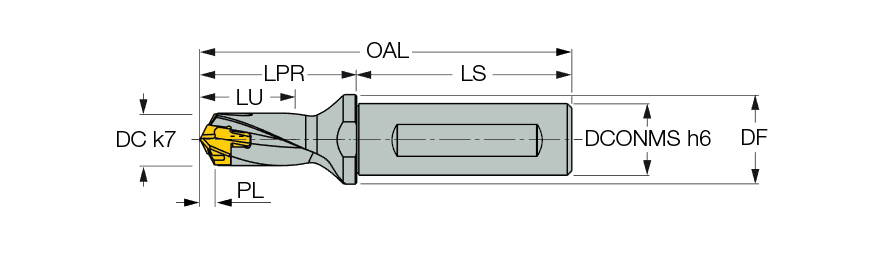

| Cutting Diameter (DC) | 22 mm | Shank Length (LS) | 56 mm |
| Usable Length (LU) | 36.32 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 220 |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Point Length (PL) | 3.32 mm |
| Insert Seat Size Code (SSC) | 22.0 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 22 mm | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 22.99 mm | Body Material | Steel |
| Protruding Length (LPR) | 67.8 mm | Flange Diameter (DF) | 32 mm |
| Functional Length (LF) | 63.8 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 123.76 mm |
Product Features
| Family Description | SUMOCHAM 1.5xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.866
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
