DCN 145-116-16A-8D

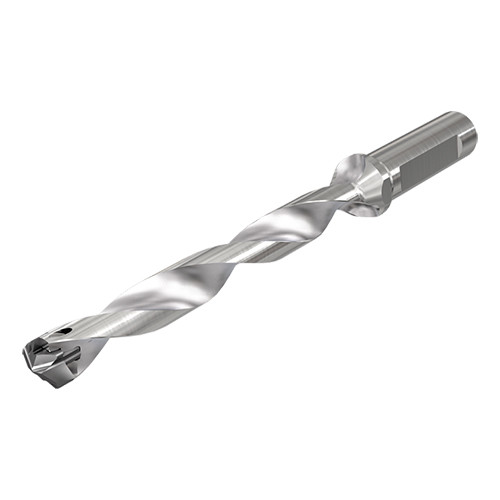

SUMOCHAM 8xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.

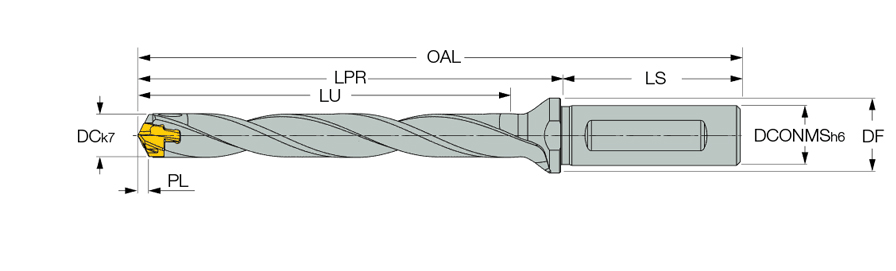

| Cutting Diameter (DC) | 14.5 mm | Shank Length (LS) | 48 mm |
| Usable Length (LU) | 118.21 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 145 |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Point Length (PL) | 2.21 mm |
| Insert Seat Size Code (SSC) | 14.0 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 14.5 mm | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 14.99 mm | Body Material | Steel |
| Protruding Length (LPR) | 136.2 mm | Flange Diameter (DF) | 20 mm |
| Functional Length (LF) | 136.2 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 184.2 mm |
Product Features
| Family Description | SUMOCHAM 8xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Prior to using the 8xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill. Not required if HCP or QCP drilling head is used Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.470
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
