DCNS 0984-492-098B-5D

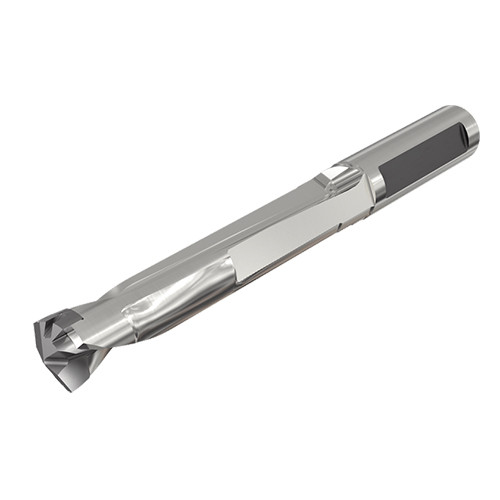

UNISUMODRILL exchangeable head drills without a flange and one flat shank, drilling depth 5xD. Suitable for chamfering holders.

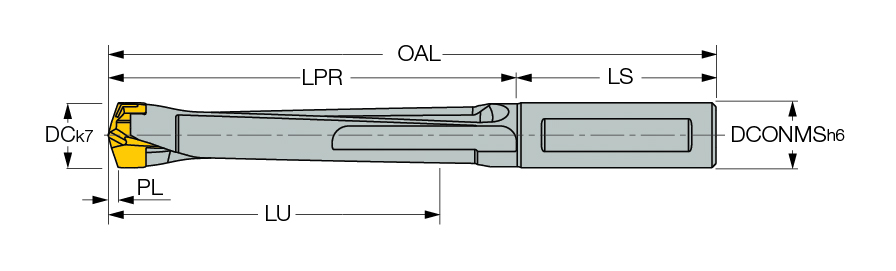

| Cutting Diameter (DC) | 0.984″ | Shank Length (LS) | 2.36″ |
| Usable Length (LU) | 5.0709″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Cutting Item Count (CICT) | 1 |
| Application | | Chamfering | Drilling | | Measurement Type | Inch |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 250 |
| Connection Diameter Machine Side (DCONMS) | 0.984″ | Point Length (PL) | 0.1496″ |
| Insert Seat Size Code (SSC) | 25.0 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 0.984″ | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 1.023″ | Body Material | Steel |
| Protruding Length (LPR) | 6.1″ | Flange Diameter (DF) | 0″ |
| Functional Length (LF) | 5.923″ | Decimal Equivalent | 0.984″ |
| Overall Length (OAL) | 8.465″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | UNISUMODRILL exchangeable head drills without a flange and one flat shank, drilling depth 5xD. Suitable for chamfering holders. | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
LocalField10
0
Package Weight
1.236
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
