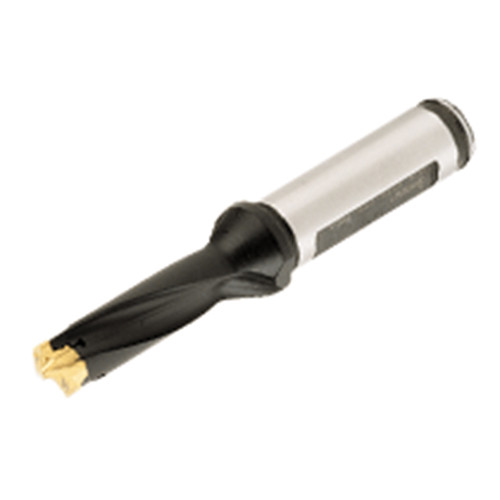

DCM 0827-248-100A-3D
Drill body with exchangeable heads, internal coolant holes and one flat shank. Drilling depth: 3xD

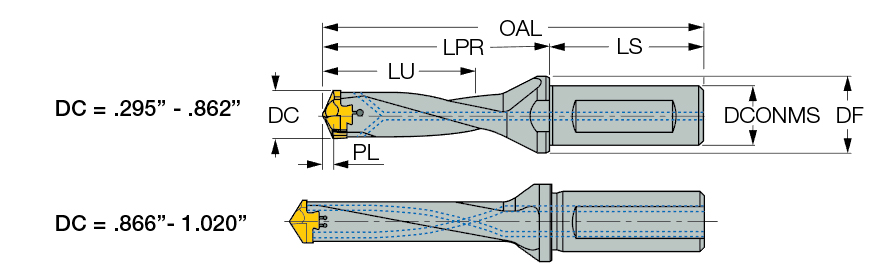

| Cutting Diameter (DC) | 0.827″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 2.48″ | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Inch |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | IDI 210-SG |
| Connection Diameter Machine Side (DCONMS) | 1″ | Point Length (PL) | 0.15″ |
| Insert Seat Size Code (SSC) | 21.0 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 0.827″ | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 0.862″ | Body Material | Steel |
| Protruding Length (LPR) | 3.57″ | Flange Diameter (DF) | 1.26″ |
| Functional Length (LF) | 3.42″ | Decimal Equivalent | 0.827″ |
| Overall Length (OAL) | 5.77″ | Body Diameter Reduced (BDRED) | 1.26″ |
| Shank Length (LS) | 2.2″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Drill body with exchangeable heads, internal coolant holes and one flat shank. Drilling depth: 3xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body Drill tolerance: k7 |
