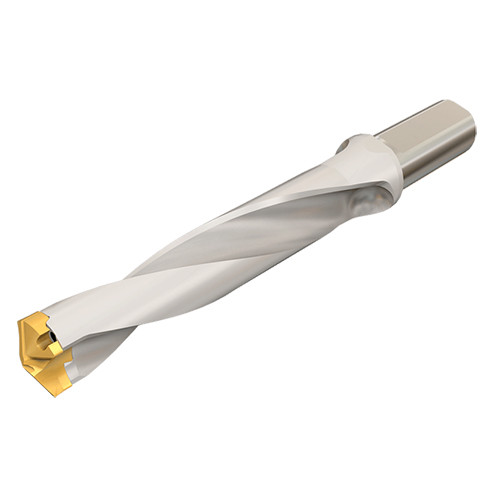

DCM 210-105-25A-5D
Drill body with exchangeable heads, internal coolant holes and one flat shank drilling depth: 5xD

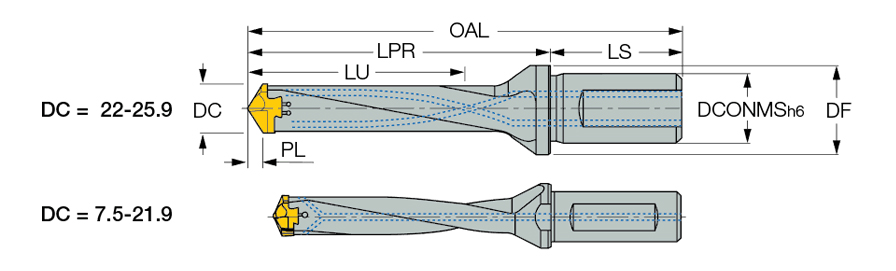

| Cutting Diameter (DC) | 21 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 105 mm | Cutting Item Count (CICT) | 1 |
| Application | | Chamfering | Drilling | | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | IDI 210-SG |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Point Length (PL) | 3.82 mm |
| Insert Seat Size Code (SSC) | 21.0 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 21 mm | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 21.9 mm | Body Material | Steel |
| Protruding Length (LPR) | 132.8 mm | Flange Diameter (DF) | 32 mm |
| Functional Length (LF) | 128.98 mm | Body Diameter Reduced (BDRED) | 32 mm |
| Overall Length (OAL) | 188.8 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Length (LS) | 56 mm |
Product Features
| Family Description | Drill body with exchangeable heads, internal coolant holes and one flat shank drilling depth: 5xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body Drill tolerance: k7 |
Shipping Info
Package Weight
1.173
Related Documentation
Do not monut smaller drilling heads than specificed range for drill body. Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
