DCN 0177-141-0236C-8D

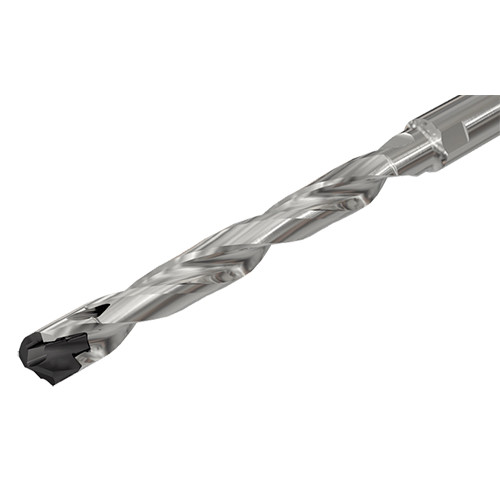

SUMOCHAM 8xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.

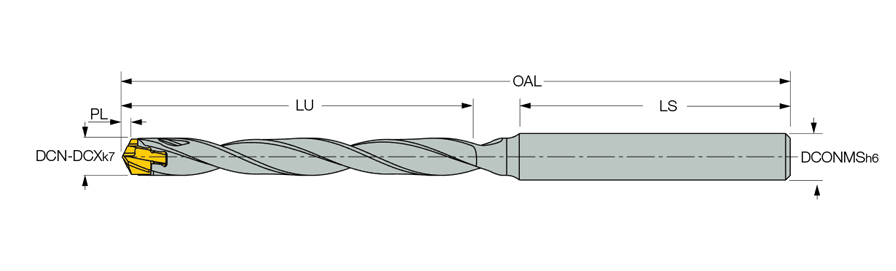

| Cutting Diameter (DC) | 0.177″ | Cutting Item Count (CICT) | 1 |
| Usable Length (LU) | 1.4433″ | Measurement Type | Inch |
| Shank Type | Round | Master Insert Identification (MIID) | ICP 045 |
| Application | | Drilling | | Point Length (PL) | 0.02598″ |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 4.5 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 0.177″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.196″ | Decimal Equivalent | 0.177″ |
| Overall Length (OAL) | 3.234″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 1.378″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | SUMOCHAM 8xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.044
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
