MM S-D-L250-C25-160T12W-H
MULTI-MASTER, 89° conical shanks for solid carbide interchangeable milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes.

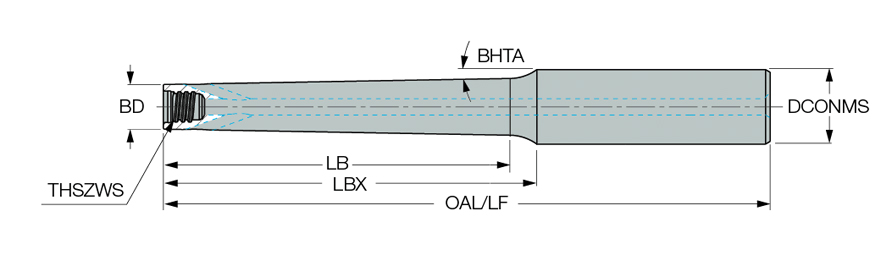

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T12 | Body Diameter (BD) | 0.72″ |
| Connection Diameter Machine Side (DCONMS) | 0.984″ | Body Length (LB) | 6.189″ |
| Material | Carbide | Weight of Item (WT) | 3.89 Lbs |
| Overall Length (OAL) | 9.843″ | Measurement Type | Inch |
| Body Length Maximum (LBX) | 6.3″ | Rotational Speed Maximum (RPMX) | 11310 Rev/min |
| Coolant Supply Property (CSP) | Through Hole | Body Material | Tungsten |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | MULTI-MASTER, 89° conical shanks for solid carbide interchangeable milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes. | Country of Origin | Israel |
| Remarks | For adaptation click on More Info Do not apply lubricant to the threaded connection. Shank Material (Shank m.): S-steel,C-carbide,W-tungsten. |
Shipping Info
Package Weight
3.777
